Ceramic High Power Metal Core PCB , ATM / Kiosk / Electronic Lock PCB Circuit Board

Name: Ceramic High Power Metal Core PCB , ATM / Kiosk / Electronic Lock PCB Circuit Board
Brand: Peng Ying
SKU: 149422046
Availability: InStock

Peng Ying Electronic Technology Co.,Ltd

Ceramic High Power Metal Core PCB , ATM / Kiosk / Electronic Lock PCB Circuit Board thumbnail-1

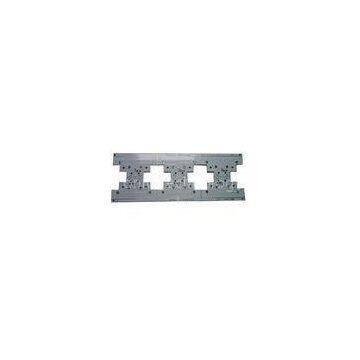

Ceramic High Power Metal Core PCB , ATM / Kiosk / Electronic Lock PCB Circuit Board photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Peng Ying

Place of Origin:

China

Model Number:

METALCOREMCPCB2310

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Peng Ying

Place of Origin China

Model Number METALCOREMCPCB2310

Delivery Time:7-15days
Certification:ISO

Ceramic High Power Metal Core PCB , ATM / Kiosk / Electronic Lock PCB Circuit Board

Product Name:	Ceramic PCB Board	Material:	Ceramic substrate
Layer Count	1 Layer	Board Thickness:	1.5mm
Temper	H16 / H18	Finishing	Immersion Gold
Original	China Ceramic PCB Manufacturer	Applications:	LED Light

Descriptions:

Ceramic PCB board, compare metal core is much expensive due to its high technology requirement for ceramic substrate PCB production. There are COB ceramic PCB, thin film ceramic PCB, high power ceramic PCB and so on.

Specification:

Maximum Board Size	23”x28”
Board Thickness	0.4-4.0mm
Minimum Conductor Width	0.10mm
Minimum Conductor Space	0.10mm
Minimum Hole Size	0.20mm
PTH Wall Thickness	>0.025mm
PTH Hole Diameter Tolerance	±0.05mm
Non PTH Hole Diameter Tolerance	±0.05mm
Hole Position Deviation	±0.076mm
Soldemask Layer Min.Bridge width	5mil
Soldemask film Min.Thickness	10mil
Insulation Resistance	1012Ω Normal
Peel-off Strength	1.4N/mm
Soldemask Abrasion	>5H
Soldexability Test	260℃20 second
E-test Voltage	50-250V
Permitivity	ε=2.1~10.0
Volume resistance	1014Ω-m,ASTM D257,IEC60093

Ceramic PCB applications:

Diagnostic Tools, Lottery Pull-Tab and Scratch-off Ticket Machines, Point-of- Sale (POS) Electronic Security Systems, Automated ITVMs (Ticket Machines), Self-Service ATMs and Kiosks, Security Door Controls, Door Card Control, Electronic Lock, Aircraft Parts/Equipment, Switching Systems, Terminal Equipment, Publicly Accessible Equipment Vending Machines, Precision Positioning Systems, Robotics System, Water Purification System, Antenna, Guitar Electronics, Position Indicators, Controllers, Memory and Non-Memory Products, Networking, Wireless Communications LED light, LCD, Voice Announcement System, LCD Monitors, Radio and TV ect.

Ceramic PCB fabrication contact us for more details.

Workshop View:
