Home > Products > 30W High Power LED > 5000K - 6000K Pure White 30W High Power LED For LED Projektor , Bridgelux Chip 45 X 45MIL

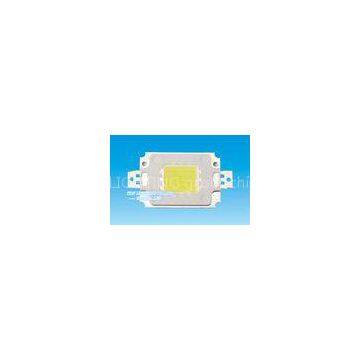

5000K - 6000K Pure White 30W High Power LED For LED Projektor , Bridgelux Chip 45 X 45MIL

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TDS		Place of Origin	China
Model Number	TDS-P030LA Series

Product Description

Delivery Time:2-5 days / Depends on the Production Order
Certification:CE ROHS

5000K - 6000K Pure White 30W High Power LED For LED Projektor , Bridgelux chip 45 X 45MIL

Quick Detail:

Features

● Highest flux per LED family in the world / 4500lm

● Led chip from Epistar and Bridgelux. 45X45MIL

● Long lifespan(up to 100k hours)

● Available in White: 2500K-25000K

● Lambertian radiation pattern

● Same as the brightness of 180W halogen lamp.

● Low voltage DC 12V / D24 operated

● Cool beam, safe to the touch (180 degree)

● 10W LED lens with reflector can be available.

● Connection: Different connections.(Check following 5-100W led diagram)

● Superior ESD protection

● RoHS CEcompliant—lead-free

● Instant light (less than 100ns )

Applications:

All general Indoor lighting and outdoor lighting:

Led Spotlight	under water lamp	Led bay light	Led street light	Led bulb
under ground light	led fluorescent tube	Led surgery light	Led garden light	Down light
Led flood light	Led decorative light	Led desk light	Led dancing light	Ceiling light
plant growing light	high power led bay light	Led aquarium light	Led tunnel light	Candle light
Led projector	LED Flash light	led sign board	Led traffic light	car head light

Specifications:

Name	Model	Color	Angle(°)	wave length/Color Temperature (IF=2000mA)	Luminous flux (IF=2000mA)	forward voltage (IF=2000mA)
MIN	MAX	MIN	MAX	MIN	MAX
30 watt LED	TDS-P030LRC11	RED	180	620nm	625nm	300	400	12	15
TDS-P030LAD18	BLUE	180	460nm	465nm	400	550	12	15
TDS-P030LAF25	GREEN	180	520nm	525nm	1000	2200	15	17
TDS-P030LAO27	WHITE	180	2000K	3000K	2000	2800	15	17
TDS-P030LAQ27	WHITE	180	3000K	4000K	2000	2800	15	17
TDS-P030LAS27	WHITE	180	4000K	5000K	2000	3000	15	17
TDS-P030LAU27	WHITE	180	5000K	6000K	2000	3000	15	17
