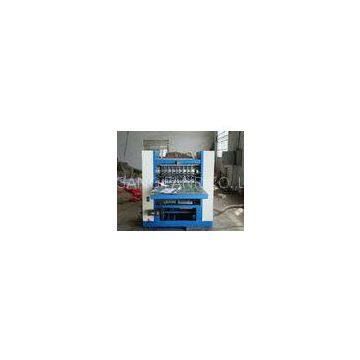

Professional Stable FS600 Inter - fold Foil Sheet Machine for Food / Fruit Packaging
FS600 Inter-fold Foil Sheet Machine for Food/Fruit Packaging
Brief Introduction:
This ideal machine used to making inter-folding foil sheet or pop-up foil sheet.
Combination of both Western & Asian Technologies on complete production and control, this machine adopt vacuum absorption folding and automatic counting technologies. With stable performance and high efficiency, it is one of most advanced aluminum foil sheet manufacturing machines.
Functions and Features:
- Feeding, folding and forming fully-automatic
- Automatic counting, bilateral product placement and lineup output;
- Tool-steel inclined-knife for cutting; vacuum absorption folding method (Roots vacuum pump absorption system);
- Feed releasing controlled by pneumatic expansion shaft with magnetic powder brake;
- Steel-rubber roller pair embossing structure that ensures clear patterns;
- Frequency conversion variable speed motor for speed regulation.
Production Process:
Loading small material rolls → cross folding (overlapping) → forming.
Optional Modules:
1. Panasonic transducer and PLC control system;
2. Feed-breakup auto stop function, which prevents rejections caused by aluminum foil or feed breakups;
Technical Parameters:
|
Model |
FS 600 |
|
Material thickness |
11--25micron |
|
Finished products unfold size |
273×300/225mm(length × fixed breadth) |
|
Finished products fold size |
136× 300/225 mm(length × fixed breadth) |
|
Final Products shape |
“V” form cross folding, draw-out type |
|
Embossing Device |
steel-steel roller pair; steel-polyurethane roller pair |
|
Unwinding shaft diameter |
76mm |
|
Max.raw material dia |
600mm |
|
Max.raw material width |
600mm |
|
Speed |
800 pcs/min (two lines) |
|
Voltage |
380V/50Hz (three phase) |
|
Power |
10.5KW |
|
Weight |
3500kg |
|
Machine Dimension (L×W×H) |
4500×1500×1850 mm |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.
2. Q: What certificate do you have?
A: We have ISO ,SGS and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: What’s the main market of your company?
A: We have customers all over the world.
7. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.
8. Q: Can we visit your machine operating in your factory?
A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and
business negotiations!
9. Q: How can we visit there?
A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
