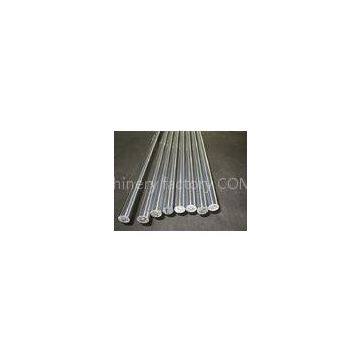

Round CK45 Hard Chrome Plated Steel Bar for Hrdraulic Cylinder
- T/T L/C D/P D/A
- 7 days
You May Like
-
42CrMo4, 40Cr Hard Chrome Plated Bar, Piston Rod For Construction Machine
-
42CrMo Hydraulic Cylinder Hard Chrome Plated Rod, Steel Piston Rods
-
CK45,ST52 Cr-plating Piston Rod, High Strength Round Hard Chrome Plated Rod
-
20MnV6, 42CrMo4, 40Cr Hard Chrome Plated Rod For Heavy Machine
-
CK45, ST52, 20MnV6 Hydraulic Hard Chrome Plated Rods / Bars / Shafts
-
42CrMo4, 40Cr Precison Hard Chrome Plated Rod For Hydraulic Cylinder
Product Details
| Brand Name | HY | Place of Origin | China | |
Product Description
Round CK45 Hard Chrome Plated Steel Bar for Hrdraulic Cylinder
S45C HARD CHROME PLATED BAR FOR HRDRAULIC CYLINDER
Detailed Product Description
1.Material:CK45
2.ISO9001:2008
3.Diameter:6~1000mm
4.length:1000~8000mm
5.Ground and chrome plated
Detailed Description
1.CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
2.MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALI |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
