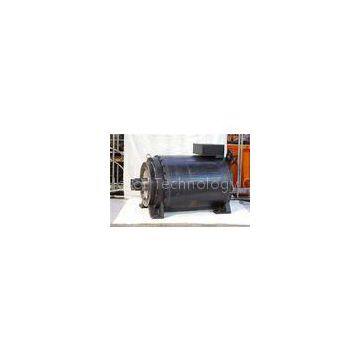

6000N-m AC Direct Drive Servo Motor , Low Speed High Torque
Quick Detail:
Low speed high torque electric servo motor
Low speed electric direct drive servo motor
Permanent magnet torque servo motor
Direct drive servo motor
Continuous torque: 200 N-m ~ 6000 N-m
Output power: 10kW-200Kw
Speed: 10rpm-600rpm
Long life design due to low speed running
High quality with competitive price
Description of low speed high torque permanent magnet servo motor:
Permanent magnet AC servo motor-synchronous. Low speed and high torque. Continuous torque ranging from 200 N-m to 6000 N-m. Speed ranging from 10rpm to 600rpm. Dependability designed in the high 155°C design. High torque density design with strong neodymium magnets. Compact design and more light weight. Long life design due to low speed running. High quality with competitive price. Provide various low speed and high torque permanent magnet servo motors according to your requirement.Low speed and high torque permanent magnet servo motor provides higher dynamic stiffness by eliminating the compliance of shaft attachments. Direct drive motor construction gives equipment designers the advantages of lowered costs, increased reliability and improved performance. Furthermore, this type of motor embodies the patented surface magnet assembly technology, which endows the motors with the highest torque density and compact size.
Ningbo Hisky motor technology co.,ltd is a professional manufacturer and supplier of permanent magnet AC servo motor and permanent magnet synchronous servo motor from china and also have the capability to design and manufacture specific motors according to your requirement. After years of market development, our products have been exporting to Europe, America, Asia and other international markets. When you are looking for low speed high torque permanent magnet servo motor or have any questions about our products, please feel free to contact us and we will reply as soon as possible.
Specifications of low speed high torque permanent magnet servo motor:
|
Model |
HS3080032R-W |
HS3080042R-W |
HS3080052R-W |
|
|
Number of poles |
12 |
12 |
12 |
|
|
Rated Power(kW) |
25 |
33.5 |
42 |
|
|
Rated Current(A) |
54 |
76 |
100 |
|
|
Voltage(V) |
380 |
380 |
380 |
|
|
Rated Torque |
N-m |
800 |
800 |
800 |
|
kgf-cm |
8160 |
8160 |
8160 |
|
|
Induced Voltage Constant(V/krpm) |
967 |
762 |
572 |
|
|
Torque Constant(N-m/A) |
14.8 |
10.5 |
8 |
|
|
Maximum Torque |
N-m |
1200 |
1200 |
1200 |
|
kgf-cm |
12240 |
12240 |
12240 |
|
|
Rated Speed(rpm) |
300 |
400 |
500 |
|
|
Maximum Speed(rpm) |
