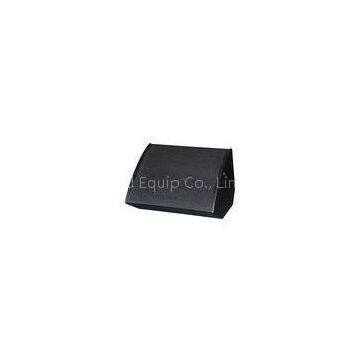

Stage Monitor PA Sound Equipment With Coaxial Drive 2 Neutrik NL4MP

Quick Detail:

Applied with coaxial technology(point source theory). Remarkable vocal presence, clarity, high stability and wide dispersion.

Description:

The coaxial technology has demonstrated numerous advantages over classic two-way systems which typically suffer from interference around the crossover point, resulting in lobing, uneven frequency and power response. By superimposing HF and LF acoustic centers, the coaxial design creates a virtual point source with significantly improved radiation characteristics. This is particularly valuable in distributed sound reinforcement applications where most listeners are located off the system axis. As the sound field of coaxial enclosures is stable over the entire frequency spectrum and in all directions, all listeners benefit from an even sonic performance within the enclosure beamwidth.

The particular benefits of coaxial technology are related to the radiation characteristics of a point source. The natural studio monitor sound quality and the aural sensation of transparent sound typical of coaxial systems are adapted to multi-purpose applications.

Due to its coaxial design, it is an extremely compact low height cabinet with two set-up angles. MX can be used as a stage monitor, or a downfill in flown applications

15” coaxial stage monitors, three versions (fixed with different drivers) are available for options. MX-15I and MX-15II coaxial driver has a wide dispersion of 90°x 90°(HxV). MX-15III is fixed with one neodymium coaxial driver under a 60°x 40°(HxV) horn. If the stage is not so wide and a little bit deep, then you can choose MX-15III(with horn).MX-15III’s neodymium driver has narrow dispersion and more focused sound energy. If your stage is wide, then choose MX-15I(without horn) or MX-15II(without horn).They have wide dispersion and HF sound effect is good.

Applications:

church, conference, background music, night club, disco, concert and living event.

Specifications:

Components:   coaxial driver (3\"+15\")

Nominal Impedance:   8ohm

RMS Power Handling:  400W

Peak Power Handling:  1600W

Frequency Response:  40Hz-20KHz

Crossover Point:  1.6 KHz

Sensitivity(1W/1M):     98dB

Max. SPL:   135dB

Dispersion(HxV):    90°x 90°

Dimensions(HxWxD):  638x576x413mm

Packing Dimensions:

Net/Gross Weight(Kg):  28/33

Connector:  2 Neutrik NL4MP

Competitive Advantage:

remarkable vocal presence, clarity, high stability and wide dispersion.
