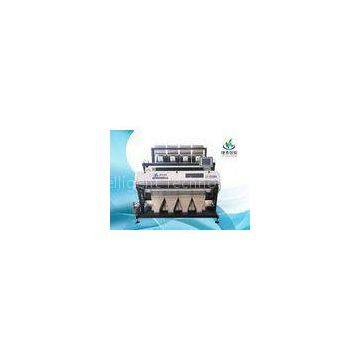

0.02 m㎡ Tiny Spot Pea Color Sorter With Perfect Hardware System , CCD Sensor
Quick Detail:
Name: Pea Color Sorter
Brand: Jietai
high-speed parallel data processing chip
international first-class optical lens
high-sensitivity chromatic CCD image sensor
self-adaptive working temperature
Description:
high-speed parallel data processing chip
By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color separator working efficiency. High quality image processing algorithm:
international first-class optical lens
Adopt the international first-class optical lens; the articulation up within 0.02 mm2 can recognize a subtle chromatic and tiny flaws.
high-sensitivity chromatic CCD image sensor
High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition;
self-adaptive working temperature
Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.
Applications:
Pea ,Industrial,Agricultural ,Pea sorting ,The same size with Pea
Specifications
| ITEM.NO | JT-CCDR2 | JT-CCDR3 | JT-CCDR4 | JT-CCDR5 |
| Machine weight(kg) | 700 | 900 | 1100 | 1300 |
| Throughput(T/H) | 1-2.5 | 1.5- 4.5 | 2.5-6 | 3~7 |
| light source | LED light | LED light | LED light | LED light |
| pixel of camara | 2048 | 2048 | 2048 | 2048 |
| Voltage(v) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Power (kw) | 0.8-2 | 1.0-2.5 | 1.2 - 3.0 | 1.4- 3.5 |
| Sorting Accuracy(%) | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Optimized carryover | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
| Air pressure(Mpa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
| Air consumption (L/min) | 800-1300 | 1000-1800 | 1200-2500 | 1500-3000 |
| Package | wooden case | wooden case | wooden case | wooden case |
Product Features
Filters Brand SMC (import from Japan)
Clean,dry and oil-free air is most important for color sorter’s sorting accuracy and lifetime.
Japan Brand SMC filter is NO 1 brand in the world. It is excellent technology to filtrate
dirty air with 2 steps. The dirty air will be filtrate by the first one,
the second filter will filtrate the clean,dry,oil-free air refined again.
CCD sensor Brand TOSHIBA (Import from Japan)
Japan TOSHIBA brand CCD sensor is top quality and excellent ability to treat the image.
We are the first to apply true color of three primary colors on CCD.
It can identify tiny spots smaller than 0.02 m㎡.
