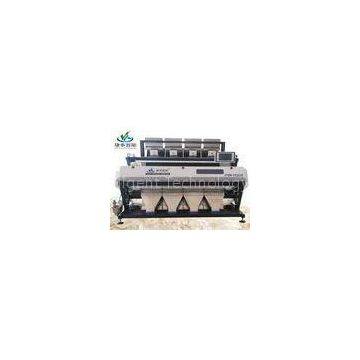

Help CenterMulti - Mode Colorsorter Machine , High Precision Rice Optical Sorting Equipment
Related Products
-
Wide Chute Unique Industrial Granules Color Sorter Machine With Double Sides CamerasNegotiableMOQ: 1 Piece -
High Performance Digital Rice / Grain Color Sorter Machine With LED Light SourceNegotiableMOQ: 1 Piece
-
64 Channels Rice Digital Intelligent CCD Color Sorter Machine With Japan Vacuum CleanerNegotiableMOQ: 1 Set
-
Double Camera 220V / 50HZ Pine Nut Colour Sorter Machine With CCD Sensor LED LightNegotiableMOQ: 1 Set
-
Millet / Parboil Rice Mill CCD Color Sort Machine 80 Channels AC220V / 50HZNegotiableMOQ: 1 Metric Ton
Certification:CE,ISO9001
Simple and Easy Operation Interface Color Sorting Equipment , Designated Procument Double Row Intensive LED Light
Quick Detail:
1. Simple and easy operation interface,many setting modes to meet the demand for the more color sorting algorithm.
2. The main CPU chip has the powerful computing capacity to handle the super-large data and make sure sorting equipment achieve a high precision.
3. Filter is imported from SMS, which is the top one NO. And in good quality.
4. Super 10” colorful touch screen in multi-mode.
Description:
1. Simple and easy operation interface,many setting modes to meet the demand for the more color sorting algorithm.
2. The main CPU is ALTER made in the USA, and with The TOSHIBA’s CCD sensor and phoenix’s industrial lense combination, resolution up to 0.02m㎡ ,and to perceive the tiny col difference of the local materials .
3. Clean,dry and oil-free air is most important for color sorter’s sorting accuracy and lifetime.And there are two steps for filtrate the dirty air. Step one ,to filtrate the water, oil of the air,step two, filtrate the clean,dry,oil-free air refined again
4. The operation interface adopts the 10-inch TFT color touch screen with multi-mode in different language, you can change the mode and language easily as you need .
.
Applications:
Applicable to all types of materials,rice, grain,and industrial granules etc.
Specifications:
| Model | JTDM-CCD320 |
| Throughput(T/H) | 5- 12 |
| Sorting Accuracy(%) | 99.99% |
| Optimized carryover | ≥10:1 |
| (V) | AC220V,50HZ |
| Power(KW) | 1.2 - 3.0 |
| Air Pressure(Mpa) | ≥0.6 |
| Air Consumption (L/min) | 1200-2500 |
| Weight(Kg) | 1100Kg |
| Dimension(mm) L×W×H | 1983*1520*1800 |
Some tips for equipment Routine maintenance :
Maintenance Operation per shift: Check all spare parts to make sure there are no loose,sweeping dust Removal by dust scraper: Clean up the dust of the brush on dust scraper with the cleaning gun before you are off work;check if runs smoothly per month and tighten where it is loose Dust removal of sorting chamber:remove the inside and outside of the glass with dry and clean cloth cleans, and meanwhile check whether the dust scraper is in order. Drainage of filters:All filters should be frequently discharged (at least three times each shift) to prevent impurities from entering it’s core parts in case of damage to it , causing unnecessary loss
