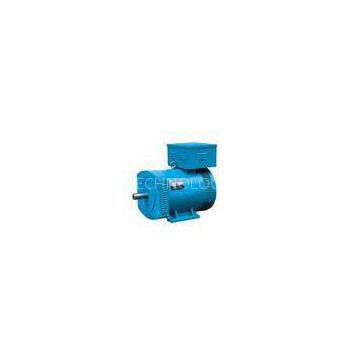

10kva - 500kva TFW Marine Brushless Three-Phase Victory Alternator
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
10kva - 1000kva Three-Phase a.c. Synchronous Brushless Generator
-
IP22 / IP23, 10KVA - 1000KVA TFW2 A.C. Synchronous Brushless Generator
-
A.C. Synchronous Brushless Generator Victory Alternator For Hospital
-
3KVA - 60KVA STC Three-Phase A.C. Synchronous Brush Generator
-
Single-Phase A.C. Synchronous Brush Generator / Victory Alternator
-
11kw Light Tower With Diesel Engine Generator Set For Minning
Product Details
| Brand Name | VICTORY POWER RELIABILITY | Place of Origin | China | |
| Model Number | Marine alternator 10KVA~500KVA |
Product Description
Certification:CE, ISO, SONCAP
1.12.0KW / 15.0KVA
2.strong and durable
3.industrial generator
4.three-phase synchronous generators
10kva - 500kva TFW Marine Brushless Three-Phase Victory Alternator
TFW-H series marine brushless three-phase synchronous generators are designed to shipping on base of TFW2 series generators, excellent electrical properties, reliable mechanical prpperties, strong and durable, easy for maintenance. xcept for meeting industrial generator’s standards, this series of generator also meet the standard for GB12975<> and China Classification of Society << Rules and Regulations for the Construction and Classification of Sea-steel Ships>>.
| Model | Rated Power(KW/KVA) | Rated Volt. ( V ) | Rated Curr. (A) |
| TFW-H 10 | 10/12.5 | 400 | 18.1 |
| TFW-H 12 | 12.0/15.0 | 400 | 21.6 |
| TFW-H 16 | 16/20 | 400 | 28.8 |
| TFW-H 20 | 20/25 | 400 | 36.1 |
| TFW-H 24 | 24/30 | 400 | 43.2 |
| TFW-H 30 | 30/37.5 | 400 | 54.1 |
| TFW-H 40 | 40/50 | 400 | 72.2 |
| TFW-H 50 | 50/62.5 | 400 | 90.2 |
| TFW-H 64 | 64/80 | 400 | 115.6 |
| TFW-H 75 | 75/93.75 | 400 | 135.5 |
| TFW-H 90 | 90/112.5 | 400 | 162.6 |
| TFW-H 100 | 100/125 | 400 | 180.4 |
| TFW-H 120 | 120/150 | 400 | 216.8 |
| TFW-H 150 | 150/187.5 | 400 | 271 |
| TFW-H 160 | 160/200 | 400 | 288.6 |
| TFW-H 180 | 180/225 | 400 | 324.7 |
| TFW-H 200 | 200/250 | 400 | 360.8 |
| TFW-H 220 | 220/275 | 400 | 396.8 |
| TFW-H 250 | 250/312.5 | 400 | 451 |
| TFW-H 280 | 280/350 | 400 | 505 |
| TFW-H 300 | 300/375 | 400 | 541 |
| TFW-H 320 | 320/400 | 400 | 577 |
| TFW-H 350 | 350/437.5 | 400 | 631.5 |
| TFW-H 400 | 400/500 | 400 | 721.7 |
| Model | Rated P.F. (Cos Φ ) | Rated Speed (r/min) | Steady Volt. |
| Regulation ( ％ ) | |||
| TFW-H 10 | 0.8 | 1500 | ± 1 |
| TFW-H 12 | 0.8 | 1500 | ± 1 |
| TFW-H 16 | 0.8 | 1500 | ± 1 |
| TFW-H 20 | 0.8 | 1500 | ± 1 |
| TFW-H 24 | 0.8 | 1500 | ± 1 |
| TFW-H 30 | 0.8 | 1500 | ± 1 |
| TFW-H 40 | 0.8 | 1500 | ± 1 |
| TFW-H 50 | 0.8 | 1500 | ± 1 |
| TFW-H 64 | 0.8 | 1500 | ± 1 |
| TFW-H 75 | 0.8 | 1500 | ± 1 |
| TFW-H 90 | 0.8 | 1500 | ± 1 |
