Certification:CE,FCC,RoHS,IP65

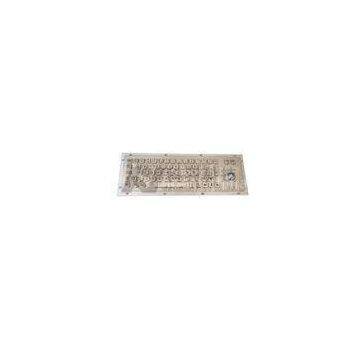

Medical Metal Keyboard With Trackball , Vandal Resistant , CE , FCC Approval
Quick Detail:
1. Industrial keyboard
2. Waterproof, dust-proof and vandal resistant
3. CE,FCC,ROHS,IP65 certificate
4. USB or PS/2 interface
5. Customized layout
Features
67 keys metal keyboard with trackball
Water, dust and vandal resistant
Etching and inking lettering
Brushed surfaceCompatible with WINDOWS98/ME/2000/XP
Designed for public, outdoor, industrial and other extreme surroundings
Can be cleaned with soapy water, disinfectant or other cleaning agents
1 year warranty, can be upgrade longer
CE, RoHS, FCC approval
Dimension
Front panel: 320x110mm
Overall: 354x124mm
Trackball Dia.:38mm
Material
Front plate: 304# Stainless steel
Keycaps: 304# Stainless steel
Trackball: 304# Stainless steel
Back plate: Aluminum alloy
Free Options
Trackpad type (KY-PC-NT)
Most language layout
USB and PS/2 interface
Mechanical
IP65
NEMA4, IK7
Key stroke travel: 2mm
Key actuation force: 120g/1.18N
Key durability: more than 1 million click times
Net weight: 1.3kg
Operation temperature: -10℃ to +50℃
Storage temperature: -30℃ to +80℃
Relative humidity: 30% to 95%
Atmospheric pressure: 50kPa to 110kPa
Electrical
Power input: +5V/DC, 10mA
EMC emission: EN55022(B)
Mechanical trackball resolution: X:>200dpi, Y: >190dpi
ESD resistant: 8kV by air contact, 5kV by direct contact
Upgrade Options
Optical trackpad
IP67 type
Extended operation temperature
Back light keys
Laser burnt lettering
Black color (KY-PC-N-BL)
Desktop type(KY-PC-N-Desk)
Longer warranty
Applications:
Used for date input of Kiosks, Industrial platform, Banking, Medical, Gas pumping, Gaming machine and
Security equipment.
Specifications:
|
1.Key stroke travel |
2mm |
|
2.Key actuation force |
120g/1.18N |
|
3. Key durability |
more than 1 million click time |
|
4.Operation temperature |
-10℃ to +50℃ |
|
5. Storage temperature |
-30℃ to +80℃ |
|
6. Relative humidity |
30% to 95% |
|
7. Atmospheric pressure |
50kPa to 110kPa |
|
8. Power input |
+5V/DC, 10mA |
|
9. EMC emission |
EN55022(B) |
|
10.Mechanicaltrackball resolution |
X:>200dpi, Y: >190dpi |
|
11. ESD resistant |
8kV by air contact, 5kV by direct contact |
|
12.Front panel size |
320 mm x 110 mm |
|
13.Net weight |
1.3kg |
Competitive Advantage:
1. As a leader manufacturer since 1995,we have more than 10 years experience in such area.
2. All of our products are with strict QC testing to ensure high quality products for you.
3. With such a mass production, we can provide you the most competitive prices.
