Certification:RoHS|CE|FCC

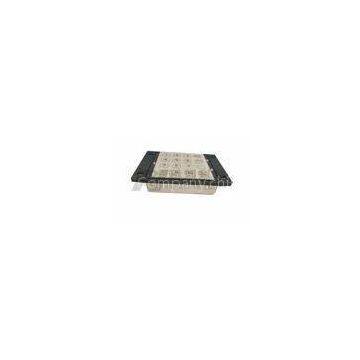

PCI 3.0 EPP Encrypted Pin Pad 16 Mini Key Vandal Proof NEMA4
Quick Detail:
1. PCI3.0 certified EPP
2. Waterproof, dust-proof and vandal resistant
3. CE,FCC,ROHS,IP65,PCI1.3 certificate
4. USB or RS232 interface
5. Customized layout
Description:
Features
16 keys PCIv3.0 approved encryption PIN pad
Water, dust and vandal resistant
Etching and inking lettering
Brushed surface
1 year warranty, can be upgrade longer
Battery inside will provide 5 years
PIN storage without power input
Stainless steel keypad with etched and colored graphics
All keypad text is black
Function keys can have colored graphics
Embossing(X O I) is available option
Designed for public ,outdoor, industrial and other extreme surroundings
Can be cleaned with soapy water, disinfectant pr other cleaning agents
Mechanical
IP65 , NEMA4, IK7
Key durability: more than 1 million click times
Operation temperature: -10℃ to +50℃,can be extended to -40℃ to +80℃
Storage temperature: -40℃ to +80℃
Relative humidity: 30% to 95%
Atmospheric pressure: 50kPa to 110kPa
Approvals:
PCI1.3
Passed the certification of China Central Bank card testing center
CE, RoHS, FCC
Electrical:
Power input: +5V/DC
EMC emission: EN55022:2006
EMC emission: EN55024:1998+A1:2001+A2:2003
Mechanical trackball resolution: X:>200dpi, Y: >190dpi
ESD resistant: more than 15kV by direct contact
Logic Characteristic:
Well managed key management system.
Completed and handy API lib and test program.
The algorithm supports:
-TEDS MAC algorithm(ANSI X9.19)
-TDES PIN encryption
-PINBLOCK Conforms to ISO9564-1:format0, format1, format3
Less than 1 second for the MAC operation in 3DES with 512 bytes of data PIN encryption.
Operated in security module.
Drivers for Windows NT/2000/XP.
Support wosa 3.0 sp.
Applications:
Used for date input of Kiosks, Industrial platform, Banking, Medical, Gas pumping, Gaming machine and Security equipment.
Specifications:
|
1.Key stroke travel |
0.45mm |
|
2.Key actuation force |
320g/3.14N |
|
3. Key durability |
more than 1 million click time |
|
4.Operation temperature |
-10℃ to +50℃ |
|
5. Storage temperature |
-40℃ to +80℃ |
|
6. Relative humidity |
30% to 95% |
|
7. Atmospheric pressure |
50kPa to 110kPa |
|
8. Power input |
+5V/DC |
|
9. EMC emission |
EN55022:2006 |
|
EMC emission |
EN55024:1998+A1:2001+A2:2003 |
|
10. ESD resistant |
More than 15kV by direct contact |
|
12.Front panel size |
87 mm x 91 mm |
|
13.Net weight |
0.9 kg |
Competitive Advantage:
1. As a leader manufacturer since 1995,we have more than 10 years experience in such area.
2. All of our products are with strict QC testing to ensure high quality products for you.
3. With such a mass production, we can provide you the most competitive prices.
