Certification:CE , FCC , RoHS

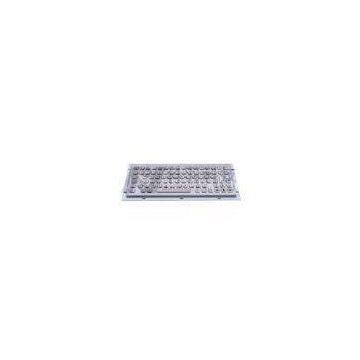

86 Key Industrial Stainless Steel Keyboard For Medical , Waterproof IP65
Quick Detail:
1. Stainless steel industrial keyboard;
2. Waterproof, dust-proof and vandal resistant;
3. CE,FCC,ROHS,IP65 certificate;
4. USB or PS/2 interface;
5. Customized layout.
Features:
86 keys silicon rubber switch metal keyboard;
Water, dust and vandal resistant;
Etching and inking lettering;
Brushed surface;
Compatible with WINDOWS98/ME/2000/XP;
Designed for public, outdoor, industrial and other extreme surroundings;
Can be cleaned with soapy water, disinfectant or other cleaning agents;
1 year warranty, can be upgrade longer;
CE, RoHS, FCC approval.
Dimension:
Front panel: 319x135mm;
Overall: 343x159mm;
Material:
Front plate: 304# Stainless steel;
Keycaps: 304# Stainless steel;
Back plate: Aluminum alloy.
Mechanical:
IP65 (certificated), NEMA4, IK7;
Key stroke travel: 2mm;
Key actuation force: 120g/1.18N;
Key durability: more than 1 million click times;
Net weight: 1.5kg;
Operation temperature: -10℃ to +50℃(certificated);
Storage temperature: -30℃ to +80℃(certificated);
Relative humidity: 30% to 95% (certificated);
Atmospheric pressure: 50kPa to 110kPa.
Electrical:
Power input: +5V/DC, 10mA;
EMC emission: EN55022(B);
ESD resistant: 8kV by air contact, 5kV by direct contact (certificated).
Free Options:
Most language layout;
USB and PS/2 interface.
Upgrade Options:
IP67 type (certificated);
Extended operation temperature (certificated);
Back light keys;
Laser burnt lettering;
Black color (KY-PC-F1-BL);
Desktop type (KY-PC-F1-Desk);
Longer warranty.
Applications:
Used for date input of Kiosks, Industrial platform, Banking, Medical, Gas pumping, Gaming machine and
Security equipment.
Specifications:
|
1.Key stroke travel |
2mm |
|
2.Key actuation force |
120g/1.18N |
|
3. Key durability |
more than 1 million click time |
|
4.Operation temperature |
-10℃ to +50℃ |
|
5. Storage temperature |
-30℃ to +80℃ |
|
6. Relative humidity |
30% to 95% |
|
7. Atmospheric pressure |
50kPa to 110kPa |
|
8. Power input |
+5V/DC, 10mA |
|
9. EMC emission |
EN55022(B) |
|
10. ESD resistant |
8kV by air contact, 5kV by direct contact |
|
11.Front panel size |
319 mm x 135 mm |
|
12.Net weight |
1.5 kg |
Competitive Advantage:
1. As a leader manufacturer since 1995,we have more than 10 years experience in such area;
2. All of our products are with strict QC testing to ensure high quality products for you;
3. With such a mass production, we can provide you the most competitive prices.
