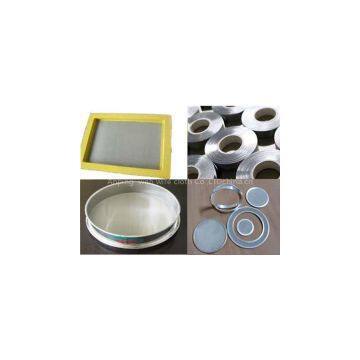

Plain Dutch Weave Stainless Steel Wire Mesh

Materials :stainlesssteel 304, 304L, 316, 316L

Plain dutch weave stainless steel wire mesh

Characteristics of plain dutch weave stainless steel wire mesh:
1）”zero”mesh.The wire diameter of warp wire is larger than weft wire.
2）Every weft wire tight with each other.
3）High precision and flow rate.
4）It will filter more solid particle in comparison with square hole and rectangular hole.
Plain dutch weave stainless steel wire mesh is the best filtration mesh in water treatment system,especially in critical application of the spatial filtration, and the fuel and combustion chamber filtration etc.

Notes:

1. mesh  :  numberof openings per linear inch measured from the center of one wire to a point oneinch distant.

2. wire  :  thethickness of the wire in millimeters

3.aperture  :  the distance between two adjacent parallelwires in millimeters

4. openarea (%) : the proportion of open space in section of screen expressed as apercentage.

5. rollwidth: roll width in meters. roll length: roll length in meters.

6. weight:weight in kilograms for one square meter.

Application

for shielding, paper-making, window screen, printing, filters,battery etc.

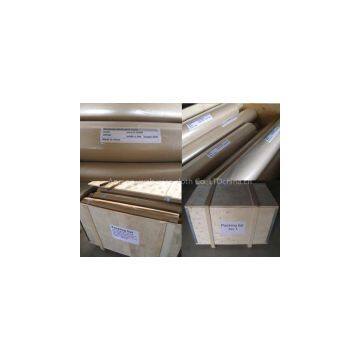

Packing: packedin rolls ,outside wooden cases
