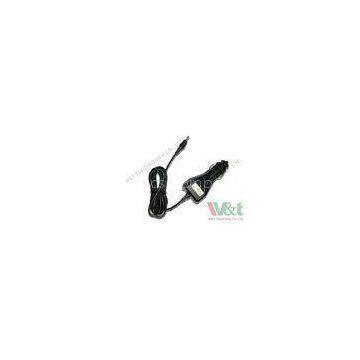

12V - 24V 6W USB Travel Charger Adapter For Car / Samsung Galaxy S3 S4
Quick Detail:
6W W&T Travel Car charger Series, in-car charger, with Direct or Curl cable, Intelligent IC chip inside recognizes a full battery and automatically switches to a saver mode, With short circuit protection and never heats or over charge the battery.
Input/Output Specifications:
Input voltage: DC 12V-24V
Range voltage: DC 9V~36V
Output power: 1~5W
Output voltage: DC 3.6V ~ 12.0V
Output current range: 200MA~1.0A
Safety:
E-MARK CE FCC
Competitive Advantage:
High efficiency power
Meets \"ENERGY STAR\" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Intelligent IC chip
Application:
It’s suitable for an extremely wide range of applications, including:
• For iPad, iPhone, iPod, MP3/MP4 players, Digital camera, GPS devices, Smart Phones etc, Mobile phone or other device
• Electronics Toy Li-Lon battery charger Tester machine and industrial machine Communication terminals Digital product and radio device Medical and exercise device or equipment
Datasheet spec
|
INPUT |
Voltage |
DC 12V-24V universal full range |
|||
|
Leakage Current |
＜0.5A@ DC 12V input |
||||
|
OUTPUT |
PART NO. |
CA060050 |
CA060080 |
CA060100 |
CA060120 |
|
Voltage |
5V |
5V |
5V |
5V |
|
|
Max Load |
0-0.5A |
0-0.8A |
0-1.0A |
0-1.2A |
|
|
Output Tolerance |
±5% |
±5% |
±5% |
±5% |
|
|
Ripple Noise(MAX) |
100mV |
100mV |
100mV |
100mV |
|
|
Efficiency(MIN) |
≥85% |
≥85% |
≥85% |
≥85% |
|
|
Output MAX |
2.5-6W |
2.5-6W |
2.5-6W |
2.5-6W |
|
|
PROTECTION |
Over Voltage |
over 120%～150 max |
|||
|
Shutdown and latch off, recover after re-start up |
|||||
|
Over Load & Short Circuit |
When power supply over 105%～150 max load or short circuit acted,powr supply will be shutdown and recover automatically after the fault is removed |
||||
|
Over Temperature |
Over 95℃,the power supply will shutdown. |
||||
|
EMC |
EMI |
EN 55022 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B |
|||
|
Compliance to EN61000-3-2 CLASS D,EN61000-3-3 |
|||||
|
EMS |
EN55024:EN61000-4-2,3,4,5,6,8,11 |
||||
|
OTHERS |
Cooling |
Natural Cooling |
|||
|
M.T.B.F. |
100K hours |
||||
|
Dimension |
85x38x31mm ( L*W*H ) K-017 |
||||
|
Packing |
N.W. |
