Double Crankshafts Semi Closed Structure H Frame Presses Machine For Automatic Production

China Machinery Limited

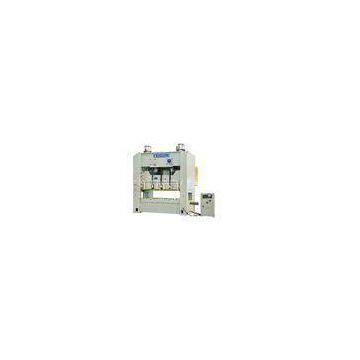

Double Crankshafts Semi Closed Structure H Frame Presses Machine For Automatic Production thumbnail-1
Double Crankshafts Semi Closed Structure H Frame Presses Machine For Automatic Production photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SINOMI, XUDUAN
Place of Origin:
China
Model Number:
DP36 Series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SINOMI, XUDUAN
Place of Origin China
Model Number DP36 Series
Delivery Time:45-90 days
Certification:ISO9001:2000, CE

Double crankshafts Semi Closed Structure H Frame Presses Machine For Automatic Production

DP36 Series H Type(H Frame) Integral Frame Double Crank Power Press

Features:


The press of this series adopts integral frame structure with rigid steel, high precision and wide operation space, which is widely used in precision work and automatic production.

* Welded frame with quality steel of good rigidity; H-frame semi closed structure of minimum deformation and good rigidity
* Double crankshafts converse rotation will eliminate side force

* Square figure with eight frication faces assures precision and stability

* Combined type pneumatic friction clutch and brake with automatic lubrication

* Hydraulic overload protector and PLC controller

* Quick die change, air cushion, photo guard, auto feeder are optional.



Item Unit DP36-110 DP36-160 DP36-200 DP36-250 DP36-315 DP36-400 DP36-500 DP36-630
 Nominal Pressrue KN 1100 1600 2000 2500 3150 4000 5000 6300
 Nominal Pressrue Stroke mm 5 6 7 7 8 8 10 10
 Slide Stroke mm 180 200 230 250 250 280 280 300
No of Strokes per minute  Constant SPM 55 40 35 32 30 26 20 18
Variable 35-65 30-50 25-45 20-40 20-35 20-30 18-25 15-20
Max.Die Height mm 410 460 510 560 560 560 590 700
Die  Height  Adjustment mm 90 100 110 120 120 120 120 130
Working Table Dimension F.B. mm 680 760 840 950 950 1100 1200 1300
L.R. mm 1730 1930 2320 2500 2500 2800 2850 3000
Thickness mm 160 170 180 180 190 200 210 220
Slide Dimension F.B. mm 500 580 650 950 950 1000 1100 900
L.R. mm 1360 1500 1850 2300 2300 2500 2450 2600
Side Opening  Dimension F.B. mm 600 800 800 900 980
