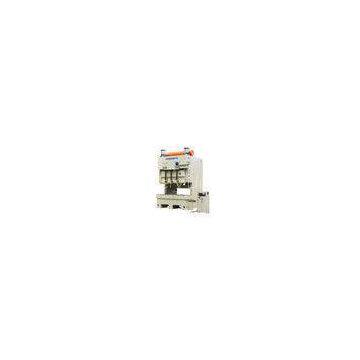

High Performance C Frame Double Crank Mechanical Power Presses Machine With Fixed Table
JE25 Series C Type(C Frame) High-Performance Double Crank Power Press With Fixed Table
Features:
* JE25 series C type two points high performance press with large worktable is suitable for large metal sheet punching and processing-die automatic production.
* With double crankshaft, welded frame and square guide ways, the machine has the ability of anti-eccentrical load and high precision, which assures high efficiency and high quality production.
* The press adopts hydraulic overload protector and PLC controller.
* Feeding shaft, air cushion can be supplied according to customers’ requirements.
Specification:
| Item | Unit | JE25-100 | JE25-160 | JE25-200 | JE25-250 | JE25-315 | |
| Nominal Pressure | kN | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Nominal Pressure Stroke | mm | 5 | 6 | 6 | 7 | 8 | |
| Slide Stroke | mm | 140 | 160 | 200 | 250 | 280 | |
| No. of strokes per minute | Variable | SPM | 35-65 | 30-60 | 30-50 | 20-40 | 20－35 |
| Max. Die Height | mm | 400 | 450 | 500 | 550 | 550 | |
| Die Height Adjustment | mm | 90 | 100 | 110 | 110 | 110 | |
| Throat Depth | mm | 350 | 390 | 430 | 470 | 480 | |
| Working Table Surface Size | F.B. | mm | 680 | 760 | 840 | 920 | 940 |
| L.R. | mm | 1880 | 2040 | 2420 | 2700 | 2800 | |
| Thickness | mm | 150 | 160 | 170 | 180 | 190 | |
| Slide Surface Size | F.B. | mm | 520 | 580 | 650 | 650 | 700 |
| L.R. | mm | 1450 | 1600 | 1850 | 2160 | 2200 | |
| Stemhole Size | mm | 3-Ø50X80 | 3-Ø50X80 | 3-Ø50X80 | 3-Ø50X80 | 3-Ø50X90 | |
| Distance between Uprights | mm | 1520 | 1620 | 1900 | 2200 | 2180 | |
| Optional Cushion | Pressure | kN | 60X2 | 100X2 | 100X2 | 100X2 | 100X2 |
| Stroke | mm | 50 | 70 | 70 | 70 | 70 | |
| Main Motor | Model | YCT225-4B | YCT250-4B | YCT280-4A | YCT315-4A | YCT315-4A | |
| Power | kW | 15 | 22 | 30 | 37 | 37 | |
| Slide Motor | Model | YPE1500-4Z |
