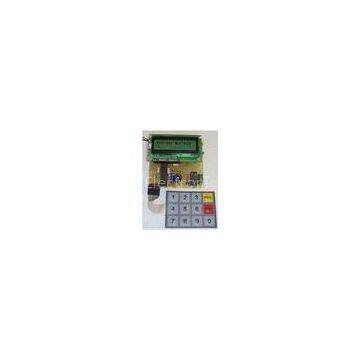

Embossed Tactile Polyester Graphic Overlays Panels With PCB / Nicomatic Connector , Flat Button

FOB Price

US$ 0.2 - 12

1 (Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TianTai		Place of Origin	China
Model Number	TT-MS-038

Product Description

Delivery Time:Around 14-18 business days after payment
Certification:ISO9001:2008, SGS,Rohs

Embossed tactile Polyester Graphic Overlays and Panels with PCB and Nicomatic Connector

Description:

Membrane switch:

perfect exterior Autotype PC or PET overlay Finish: glossy or matt. Rear Adhesive: 3M467 or 3M468 Matching color:Pantone and RALcolor matching system. SMD welding or by hand welding as per request metal dome or polydome, embossed tactile ployester assemble with silicone keypad is also available. Withstand millions of cycles Standard Tolerances: 0.10inch(0.25mm)

Applications:

Our membrane switches are widely used in :

Human Machine interface Automatic Control Equipment Telecommunications apparatus Telephone systems Household appliances Security systems Industrial controller Access control systems.....

Specifications:

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at 40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

1 material : PET /PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality

Competitive Advantage:

1. Strong capability in R&D.

2. Professional staff in Production, management, and engineering, experienced in the industry for over 17 years.

3. Professional Sales team can provide quick service.

4 Low cost and top quality

5. Long lifespan,Our membrane switch is more than 100million times.

6. In-house 100% functionally tested before delivery.
7. Customized specification is available .
8. ISO9001:2008 certified company with three factories, Can provide one station resolution for client.
