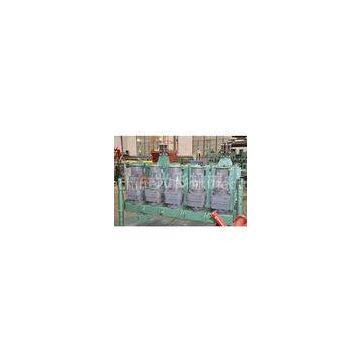

Steel Spiral Silo Roll Forming Machine Profiled Silo Wall Panel Rolling Form Equipment
Quick Detail:
Composition
GWC400-5B This spiral silo roll forming machine consists of several parts, as listed below.
1. 5T decoiler
3. Shape forming machine
5. Curving machine
8. PLC control cabinet
9. Seamer
Working process:
Decoil—Roll-form—Curve in line—Seam
Description:
The cold roll forming line is specially offered for constructing spiral steel silo. The steel coil is decoiled to deliver the steel plate to the forming machine. Then the steel plate will be processed into the shape required. Subsequently, the bending machine is employed for bending and plate edge processing, to form a spiral strip with the width from 30-40mm. The spiral strip produced by the grain silo forming equipment is used to strengthen the silo structure.
The cold roll forming machine can be applied for bending two kinds of materials for on-site silo construction. The silo roof is assembled on ground, requiring no scaffold or other auxiliary equipment, The cold roll forming line operated at the speed of 3-5m per minute, resulting in short construction period.
Applications:
Grain steel silo Commercial grain bin Spiral grain storage system Maize silo/corn silo /wheat silo/soybean silo/rice silo/animal feed silo/cement silo/paddy silo/Specifications
| Model | GWC400-5mm | Note |
| Applicable material | Galvanized sheet | This machine is customizable upon each customer\'s requirements and the characteristics of processed material. |
| Feeding width | ≤500mm | |
| Processing thickness | 1.0-4.0mm | |
| Roller material | Cr12Mov alloy steel processed with heat treatment, HRC55 | |
| Main motor power / hydraulic station power | 15kW /15kW | These parameters can be set according to the required production capacity. |
| Forming passes | 5 roll forming station and 6 seaming station | |
| Forming speed | 5m/minute | |
| Machine dimensions | 8×88×8m | |
| Machine weight | 20T | |
