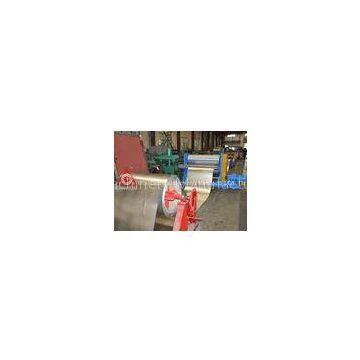

High Speed Cold Roll Forming Machine for Steel Roof Panel with Embossment

High Speed Cold Roll Forming Machine for Steel Roof Panel with Embossment

Quick Detail:

Composition

GWC25-205-1025 This roof sheet roll forming machine consists of several parts, as listed below.


1. 5T decoiler
2. roll forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. run out table

7. embossing machine

Working process:

Passive decoiling → guided material feeding → embossing→roll forming → cut-to-length → run out

Description:

The GWC25-205-1025 roof panel embossing and roll forming machine enjoys unique characteristics as follows besides the common features it shares with machines of the same series.

1. This machine can reduce one pitch and becomes GWC25-205-820, and the feeding width is adjusted to 1000mm accordingly. So, this is a dual-use product.

2. Our product is able to make use of the embossing machine to form lozenge pattern which is also called diamond pattern. Based on customer\'s requirement, other patterns are also available.

3. If needed, this roof panel embossing and roll forming machine could work without the embossing machine in order to fabricate common roof panel without any patterns, though the embossing machine is applicable for any panel.

Applications:

1. workshop

2. warehouse

3. hangar

4. gymnasium

5. theatre

6. exhibition hall

7. engine house

8. industrial buiding

9. civilian buiding

Specifications

Competitive Advantage:

1. This is a dual-use machine because one pitch could be added, making it into GWC25-205-1025 type and the feeding width is adjusted to 1200mm.

2. This roof panel roll forming machine is a very mature product, and there is no need to redesign it, thereby greatly reducing the production cycle.
