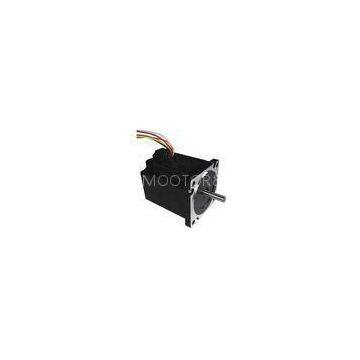

High Voltage 3 Phase Stepper Motor 86BYGH NEMA 34 With High Speed

Delivery Time:FOR SAMPLES , 7-10 days For batch . 15-25days.
Certification:CE,ROHS ,ISO9001

 High voltage 3 phase stepper motor 86BYGH NEMA 34 with High speed

   Nema 34 Hybrid Stepper Motor   Model Number: JK86H3P   Phase: 3 Phase   Structure: Hybrid   Step Angle:  1.2°   Motor Height:86mm    Holding Torque: 2 N.m- 7 N.m   Function: Control   Speed: Low or High speed   Usage: Industrial   Shape: Square     Applications:Use for robots stepper motor, electronic automatic equipment stepping motor ,  medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor

3 phase high torque hybrid stepper motor/ 3phase high voltage stepping motor/ NEMA34 low voltage stepper motor/220v input stepper motor

Description:

NEMA34 stepping motor , 86mm 3 Phase square stepper motor .45kg.cm Stepper motor , high torque stepper motor with 86mm size .60kg.cm stepping motor,

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Rotor Inertia	Mass
( °)	(L)mm	A	Ω	mH	N.m	g.cm²	Kg
JK86H3P65-3006	1.2	65	3	0.5	1.6	2	1100	1.65
JK86H3P98-5206	1.2	98	5.2	0.6	3	4.5	2320	2.70
JK86H3P113-5206	1.2	113	5.2	0.9	5.9	6	3100	3.50
JK86H3P150-5006	1.2	150	5.0	1.5	3	7	4650	5.10

Dimensions:

(Unit=mm)

Wiring Diagram:

Matching Stepper motor Driver: JK3M860
