Multi Cavity Double Injection Mould Hot Runner Point Gate

Quick Detail:

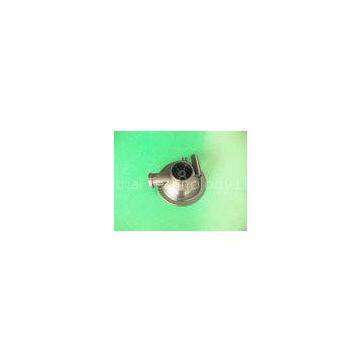

1. The part name: pipe fitting (double color injection mold)

2. Plastic material: PP+TPR

3. Gate type: Hot runner to point gate

4. Cavity material: S136 HRC48-52

5. Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers\' requirements

6. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.

7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.

Description:

KO Pattern: 7”x7”,

Sprue Radius: SR 1/2\"

Ejection type: ejection pin

Mold type: double color injection mold

The part name: pipe fitting

Part Material: PP+TPR

Locating ring Dimension: Ф3.99\",

Mold construction description: Hot runner system, many sliders, double color injection mold, and Automatic thread demoulding device.

This part has very high appearance requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport,Sliver Marks,Gas Trap Effect,Visible Ejector Marks,Deformation,Short shot Filling,Burnt Streaks,Sink Marks,Flash,Over dimension,Under dimension,Stress Crack etc. Moreover, the product finishing surface must meet the requires of texture.

Compared with traditional method of molding, advantages of two shot injection molding process are as follows:

1. The core material can use low viscosity materials to reduce injection pressure.

2. From the consideration of environmental protection, the core materials can use recycled materials.

3. According to the different use of characteristics, such as thick wall finished product cortex use soft material, the core material can use hard material or foamed plastic to reduce weight.

4. Low quality of core materials is helpful to reduce costs.

5. The cortex material or core material can use expensive material with special surface properties, such as material of EMI Shielding or high conductivity to increase product performance.
