Specification

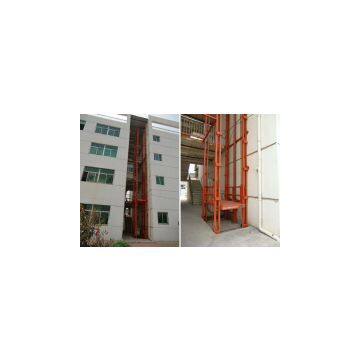

Hydraulic Guide rail lift platform of steel construction
Guide rail hydraulic lifting platform hassolid structureandlarge carrying capacityto realize material transport between different floors.
steady operationwithlow noisealso allowing multi-point control
space saving , easy for installment and maintenance
Descriptions
Guide rail hydraulic lifting platform of steel construction is a kind of non-scissor lift, which is used to transfer cargo between layers. The product has the advantage of firm steel structure, large bearing capacity; stable lifting, simple and convenient installation and maintenance. It is an economic and practical substitute for elevator as cargo transport equipment in low floors. The products are mainly used in chemical industry, high temperature or high pressure places, and power plant etc.
How to chooseyour lifting platform
In the purchase of industrial lifting platform, first of all you should have an overall consideration about the usage of the lifting platform, work frequent, utilization rate, rated capacity and other factors. Thus you can choose a suitable lifting platform for your working. The size of the platform and some other details can becustomized according to your needs. We have a wealth of professional experience and strong production design capacity. So for your special requirements, we can provide thebest solutionwithin theshortest time.
Safety device
Relief valve:prevents the excessive system pressure during upward motion.
Emergency manual valve:in case of power failure, can make the platform go down to nearest floor to open the door
Manual pump:in case of system failure, you can be use the manual pump producing high pressure oil to make the car up to the nearest floor;
Pipe rupture valve:in case of the hydraulic system pipeline rupture causing platform fall down, the valve can cut off the oil line automatically and stop falling.
Tank temperature protection: when the tank temperature exceeds the standard set, the value can send a signal and suspend the use of platform, after the temperature fall down you can restart it.
Technical parameters weprovide customized products for you !
Model | Capacity(kg) | Vertical Travel(mm) | Min.height(mm) | Platform size(mm) | Mating power(kw) |
SJD1.0-4.5 | 1000 | 4500 | 250 | 1500*1600 | 2.2 |
SJD1.0-1.4 | 1000 | 14000 | 250 | 1800*1400 | 3 |
SJD1.5-5.0 | 1500 | 5000 | 250 | 1620*1520 | 3 |
SJD2.0-5.0 | 2000 | 5000 | 250 | 1600*1500 | 3 |
SJD3.0-5.0 | 3000 | 5000 | 300 | 2000*1800 | 3 |
