Home > Tools & Hardware > Abrasive & Grinding > Grinder > High Temperature Roller Mold Circulation Oil Temperature Controller Unit 180 FOR Etching Machine /

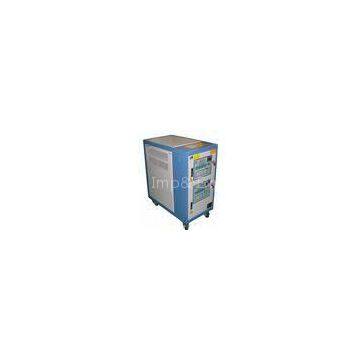

High Temperature Roller Mold Circulation Oil Temperature Controller Unit 180 FOR Etching Machine /

Name: High Temperature Roller Mold Circulation Oil Temperature Controller Unit 180 FOR Etching Machine /
Brand: AODE
SKU: 149324892
Availability: InStock

High Temperature Roller Mold Circulation Oil Temperature Controller Unit 180 FOR Etching Machine / thumbnail-1

High Temperature Roller Mold Circulation Oil Temperature Controller Unit 180 FOR Etching Machine / photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

AODE

Place of Origin:

China

Model Number:

AOS-20

Contact Supplier Request Quote Chat Now

Suzhou Honggan Imp& Exp Co.,Ltd,

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name AODE

Place of Origin China

Model Number AOS-20

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

AOS-20 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type MTC circulate high temperature heat transfer fluid through the process application for temperature control. AOS series MTC offer the range of temperature control from 25°C to 180 °C.

SAFETY PROTECTIONS:

No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.

SPECIFICATION DETAILS:

No.	Part	Specification	Data
1		model	AOS-20
2		power supply	3N-380-50HZ
3		Hot medium	oil
4		control mode	PC board Self - optimized microprocessor
5		accuracy of temp. control	PID±1℃
6		Max. temperature	180℃
7		Min. temperature	25℃
8		heating power	12KW(adjustable)
9		heat exchange area	0.1M2
10	Pump	model	RGZ-20-200
power	1.5KW
lift	20M
flow	120L/min
11		heating method	Direct heating(Indirect cooling)
12	Pipeline	hot medium inlet/outlet	DN10*4(adjustable)
cooling water inlet/outlet	DN15(adjustable)
drain oil port	DN15(adjustable)
13	Temp. Controller	model	P6100(WEST)
modulating action	Dual PID control of heating & cooling
Temp. interaction stick	K- thermocouple
display status	Respectively display set point & real point
output select	SSR output
14	Expansion Tank	volume(L)	8
