Home > Products > Crushing Equipment > Jaw Crusher,rock crusher

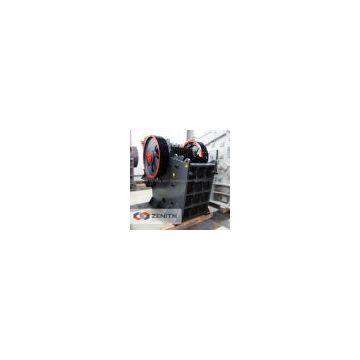

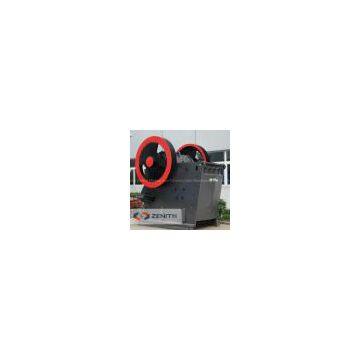

Jaw Crusher,rock crusher
- 100 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Place of Origin: | China | Model Number: | pew1100 |
Product Description
PEW Series Jaw Crusher
New generation crusher, pew series jaw crusher is born with innovative significance. It is newly designed and improved by our experts on basis of their more than 20 years' crusher manufacturing and design experience. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has a wide range of application, particularly is suitable for crushing hard rock, such as basalt, river pebbles.
Features
1. Durable moving jaw assembly.
2. Integral cast steel bearing housings.
3. Fast and safe setting adjustment.
4. Reasonable cavity design.
5. Larger-size and larger-carrying-capacity bearings.
6. Compact & robust structure.
Technical data
Model |
Feed Opening (mm) |
Max Feeding (mm) |
Discharge Opening (mm) |
Capacity (t/h) |
REV (r/min) |
Power (kw) |
Motor Model |
Machine Size (mm) |
PEW250×1000 |
250×1000 |
220 |
20-40 |
15-50 |
330 |
6-37 |
Y250M-6/37 |
1400×1850×1310 |
PEW250×1200 |
250×1200 |
220 |
20-40 |
20-50 |
330 |
6-37 |
Y250M-6/37 |
1400×2050×1310 |
PEW400×600 |
400×600 |
350 |
35-85 |
15-70 |
250 |
6-37 |
Y250M-6/37 |
1920×1460×1840 |
PEW760 |
760×1100 |
620 |
75-200 |
150-350 |
270 |
6-110 |
Y315L1-6/110 |
2600×2500×2200 |
PEW860 |
860×1100 |
720 |
100-225 |
200-500 |
240 |
6-132 |
Y315L2-6/132 |
3300×2320×3120 |
PEW1100 |
1100×1200 |
930 |
150-275 |
300-650 |
210 |
8-185 |
Y355L1-8/185 |
4140×2660×3560 |
