Shenzhen P10.416 indoor/ outdoor full color led mesh screen curtain for stage and event

FOB Price

Negotiable / Meter

1 Meter(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	S&B		Place of Origin	China
Model Number	SBI-P10.416

Product Description

Delivery Time:10~20 days
Certification:CE,RoHS，CCC

Shenzhen P10.416 outdoor full color led mesh screen curtain for stage and event

2011 Asian cup LED supplier

1. CE&RoHS certificate

2. 36 months warranty and Life long free tech-support

3.Excellent contrast ratio, high resolution/high definition

4.Perect uniformity

5.Waterproof IP65

6. Light weight and easy to install

7. Available models: p15.625, p10.416.

Application:

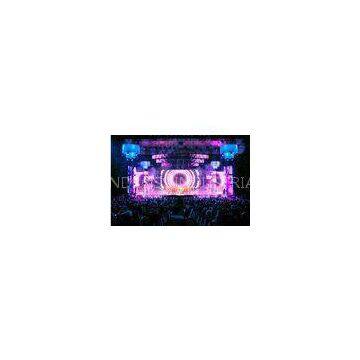

Our products have been widely used in venues as stage background, night club, the concert, bar, DISCO halls, Karaoke rooms , artistic halls, wedding, anniversary, celebration, studio, etc;

Advantage:

1. Light weight and super transparency ratio; be good at heat release;

2. Easy maintenance: the LED stripes are not screwed on the aluminum boarder but stuck by our patent stuck socket; a screw driver is never needed;

3. Use original Neutrik plugs (power + signal) to make sure the signal transmission is always fluent and smooth;

4. All cables are UL and CE approved;

5. Fast locks and positioning bolts used for reliable installation;

Technique	SMD
Pixel structure	1R1G1B 3in1
Pixel pitch	10.416mm
Pixel density	9,216 dots/㎡
Luminance	4, 500 cd/㎡
Cabinet dimension	500 * 1000mm
Cabinet resolution	48 * 96
Cabinet area	0.50 sq. meter
Optimal visual distance	>10m
Visual angel	140 degree (H/V)
Max power consumption	≤800w / ㎡
Average power consumption	≤350w / ㎡
Brightness adjustment	Adjust according to the environment
brightness software (0%-100%adjustable)
Drive mode	1/4 dynamic scan, constant current
Input voltage	AC 90~260 volts
Operation temperature	﹣40℃~ +60℃
Operation humidity	10％～90％
Inout signal	S-video, RF, RGB, Yuv, YC, composite…
Control system	DVI card + master control card + receiver card
MTBF	>5000 hrs
Life span (50% brightness)	100, 000 hrs
Malfunction dot rate	1/10000
Ingress protection rate	IP65
Transparency ratio	50%
Cabinet material	Epoxy paint coated aluminum
Application:	Rental / Permanent installation available
