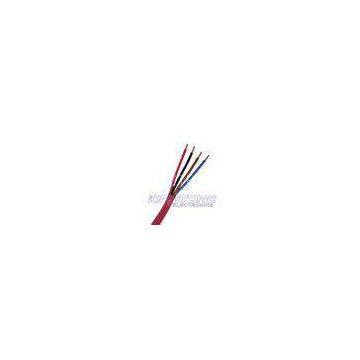

FPL 14 AWG Fire Alarm Cable , Solid Copper Conductor with Non-Plenum PVC
Quick Details
FPL 14 AWG Fire Alarm Cable Solid Copper Conductor Unshielded Types: 2C/4C Shielded Types: 2C/4C Non-Plenum PVC 500FT , 1000FT Fire Power Limited CableDescription
KINGTONE ELECTRONICS is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.
NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled and powered by the fire alarm system.
These systems are defined in the NEC as \" The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
and controlled by the fire alarm system.\"
Type FPL- FPL power-limited fire alarm cable is listed by the NEC as being suitable for general purpose
fire alarm use.This listing excludes installation in riser, ducts, plenums and other spaceused for
environmental air unless the cable is installed in conduit.All FPL cables are listed as being resistant to
the spread of fire and must pass both UL test 1424 and the vertical flame testUL 1581.
| KT1419 Fire Alarm Cables 14 AWG FPL-CL2 PVC Insulation Non-Plenum |
|||||||
| Application | |||||||
| Indoor for: | |||||||
| Audio Circuits | |||||||
| Control Circuits | |||||||
| Initiating Circuits | |||||||
| Notification Circuits | |||||||
| Properties | |||||||
| Temperature Rating: \'-20 to 75℃ | |||||||
| Operating Voltage: 300 Volts max. | |||||||
| Flame Rating: UL 1685 Vertical Tray | |||||||
| Insulation & Jacket: PVC | |||||||
| Unshielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M\' |
| 2 | 14 AWG | 0.010\" | 0.016\" | 0.200\" | 22 | 70 | 2.6 |
| 4 | 14 AWG | 0.010\" | 0.016\" | 0.214\" | 22 | 70 | 2.6 |
| Shielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M\' |
| 2 | 14 AWG | 0.010\" | 0.016\" | 0.210\" | 52 | 29 | 2.54 |
| 4 | 14 AWG | 0.010\" | 0.016\" | 0.220\" | 52 | 29 | 2.54 |
| Drain Wire | 18 AWG Solid Tinned-Copper | ||||||
| Shield | 0.001\" thick Aluminum/Mylar | ||||||
| Color | |||||||
| Number | Description | ||||||
| 2 | Blk,Red | ||||||
| 4 | Blk,Red,Ylw,Grn | ||||||
| Order Informations: | |||||||
|
KINGTONE KT1419 ×C14 E×××××××(UL) FPL OR CL2 SUN RES(ROHS) ××××FT |
|||||||
| Packing | 1000FT/Pull Box, 1000FT/Spool, Pallet |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions man
