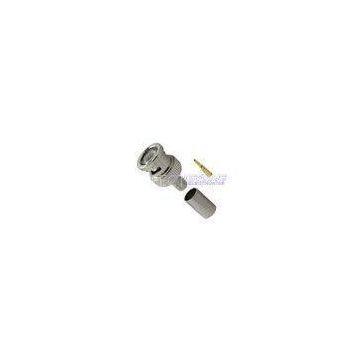

Nickel BNC Coaxial Cable Connectors with Gold plated for Radio / TV

Nickel BNC Coaxial Cable Connectors with Gold plated for Radio / TV

Quick Detail:

BNC Plug Solderless Connectors - 50 Ohm

BNC Male Crimp Connectors - 50 Ohm & 75 Ohm

BNC Male Twist On & Clamp On Connectors -50 Ohm & 75 Ohm

BNC Male Angled Connectors -45 & 90 Degree Plugs-50 & 75 Ohm

BNC Female Connectors - Crimp,Twist On, Bulkhead - 50 Ohm & 75 Ohm

BNC Female Connectors - Crimp,Twist On, Bulkhead - 50 Ohm & 75 Ohm

Reverse Polarity BNC Plug Crimp Connectors

Reverse Polarity BNC Jack Crimp Connectors

Captive gold plated center pin requires no soldering or crimping

Nickel plated brass body ideal for outdoor use

Competitive price with good and stable quality

Quickly and professionally answer for the inquire

Description:

BNC Connectors for coaxial cable Gold plated center Nickel plated Body is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNC Connectors are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316). They are used with radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and were once a popular connector for 10BASE2 computer networks. BNC connectors are made to match the characteristic impedance of cable at either 50 ohms or 75 ohms. It is usually applied for frequencies below 4 GHz [1] and voltages below 500 volts.

Applications:

Suitable for cable termination for miniature-to-subminiature coaxial cable

■ RADIO

■ TELEVISION

■ RADIO-FREQUENCY ELECTRONIC EQUIPMENT

■ TEST INSTRUMENTS

■ VIDEO SIGNALS

 ■ 10BASE2 COMPUTER NETWORKS

Specification
