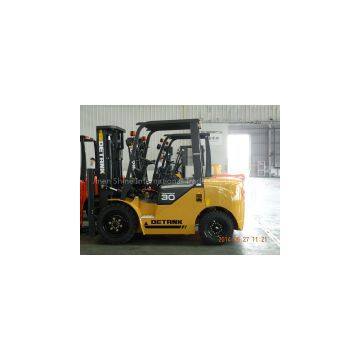

SNSC FD30 Fork Lift Diesel Cabin 3Ton

Product Parameters:

Engine Model: XINCHAI490BPG

Rated Loading Capacity: 3000kg

Max. Lifting Height: 3000mm

Min. Lifting Height: 145mm

Fork Length: 1070mm

Fork Width: 125mm

Overall Dimensions: 2695*1230*2055mm

Certification CE, EPA, GHOST, Euro 3 Emission Standard

After-sales Service Provided Overseas third-party support available

Load center: 500mm

Min. turning radius: 2400mm

Min. ground clearance: 120mm

Max. travelling speed (full load): 20km/h

Max. lifting speed: 470/520 m/s

Wheel base: 1700mm

Curb weight (without load): 4350kg

Rated power: 40/2650 kw/rpm

Displacement: 2.82L

Fuel Tank Volume: 70L

SNSC FD30 Fork Lift Diesel Cabin 3Ton's standard chinese XC490BPG, optional Japan ISUZU brand/ Yanmar / Kubota/ Perkins/ Mitsubishi engine for your choosing.

SNSC FD30 Fork Lift Diesel Cabin 3Ton' s transmission is full hyraulic automatic tranmission, Hydrualic Power Shift makes work will be more comfortable and higer efficeintly. You will enjoy to work with it.

SNSC FD30 Fork Lift Diesel Cabin 3Ton's standard mast is duplex 3m mast, we can offer all kinds free masts according customers' requirements, eg:4.5m duplex full free mast/ 6m triplex full free mast, which can make the forklift go through different height door.

SNSC FD30 Fork Lift Diesel Cabin 3Ton's adopt Japan hydraulic system and chinese best lights, quality is guaranteed, you can get spare parts in oversea market easily.
