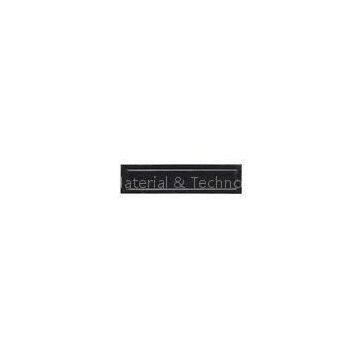

Custom Black Blank 58kHz Frequency Anti - Theft EAS Labels , 45mm 0.2mm Length

Certification:ISO9001
Custom Black Blank 58kHz Frequency Anti - Theft EAS Labels , 45mm ± 0.2mm Length

Quick details

EAS Labels

High Deactivation Performance

58kHz Frequency

Adhesive

for Anti Theft

Detailed Product Description

sourcing tag
The Q001 Label provides adequate detection and very high deactivation performance.

sourcing tag
Low-price AM labels are available in a wide range of standard and custom styles and are available in sheets and rolls to accommodate retailers with source-tagging and other in-store product protection requirements.

Product Details:


Frequency	58kHz
label length	45mm ± 0.2mm
label width	10.8mm ± 0.2mm
label thickness (excluding liner)	Maximum1.9mm
label thickness(including liner)	Maximum 2.0mm

Electrical Specifications
Frequency : 58kHz
Deactivation : 100%
Operating Distance: Up to 2m (8ft) in Dual Pedestal System.

Materials of Construction
1 . Plastic housing
2 . Resonator
3 . Laminate
4 . Bias
5 . Adhesive
6 . Release Liner
plastic housing : Polystyrene/polyethylene 0.35mm thickness.
resonator(s) : Amorphous alloy material.
Laminate : Low Density Polyethylene / Polyester /Polyethylene 0.12mm
Bias : Semi-hard magnetic material
Laminate : Low Density Polyethylene/Polyester 0.08mm
Adhesive : Double-coated acrylic-based adhesive
Minimum peel strength:≥15 N/25mm
release liner : Double-sided, silicon-coated Kraft liner 0.12mm thick

Environmental Constraints
Shelf Life: Two year from date of manufacture when Labels are stored between15-32 (60°F -90°F) and 30-80%RH.

Temperature: Maximum storage temperature not to exceed 50 (122°F) for 96hours at 80% RH.


Humidity: Unaffected by 80% humidity at 50(122°F), up to 96 hours

Usage Instructions
Place in least conspicuous location.
Do not cover warnings, expiration dates or important consumer information.
It is recommended that the surface to which the label is applied be clear and free of all dirt, grease, oil, etc.
Ambient magnetic field of labeled product greater than 100mG may result in reduced label performance.
Label not to exceed temporary magnetic field exposure greater than 8 Gauss.
