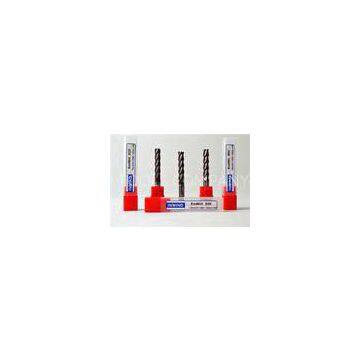

Long Reach Square End Mill HRC55 TiAlN Coating , Long Shank Roughing to Finishing Milling
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom Carbide TiAlN Coated Square End Mill CNC High Precision Cutting Tool HRC60
-
High Speed HRC60 Square End Mill Standard With 45 Helix Angle for Stainless Steel
-
Long Flute HRC60 Carbide End Mill High Precision CNC Cutter for Side Milling 0.3-0.4um
-
HRC60 Long Neck Carbide Two Flute Square End Mill High Speed Slotting End Mills
-
4 Flute HRC 60 Square End Mill TiAlN Coated Long Neck High Speed Milling , Standard Type
-
4 Flute End Mill HRC60 TiAlN Coated End Mills With Super Fine Grain Size Extra Long
Product Details
| Brand Name | INMIND | Place of Origin | China | |
| Model Number | Long Shank type 1mm to 20mm |
Product Description
Certification:SGS Factory Certificater
Long reach Square End Mill HRC55 TiAlN Coating , Long Shank Roughing to Finishing Milling
Quick Detail:
0.5-0.6um Ultra-Fine grain size solid carbide rod
TIALN Coating (Black),TiSiAlN(Copper)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC55
1 piece packing.
Long Shank Type
Description:
Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting
long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of
machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.
Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,
enhanced composited material with fiberglass,Also fit for milling copper.
Specifications:
|
Order No |
Cutting |
Flute Length |
Shank |
A.O.L |
|
d |
l |
D |
L |
|
|
3×8×3D×75L×4F |
3 |
8 |
3 |
75 |
|
4×11×4D×75L×4F |
4 |
11 |
4 |
75 |
|
5×13×5D×75L×4F |
5 |
13 |
5 |
75 |
|
5×13×6D×75L×4F |
5 |
13 |
6 |
75 |
|
6×15×6D×75L×4F |
6 |
15 |
6 |
75 |
|
8×20×8D×75L×4F |
8 |
20 |
8 |
75 |
|
3×8×3D×100L×4F |
3 |
8 |
3 |
100 |
|
4×11×4D×100L×4F |
4 |
11 |
4 |
100 |
|
5×13×5D×100L×4F |
5 |
13 |
5 |
100 |
|
6×20×6D×100L×4F |
6 |
20 |
6 |
100 |
|
8×25×8D×100L×4F |
8 |
25 |
8 |
100 |
|
10×30×10D×100L×4F |
10 |
30 |
10 |
100 |
|
12×35×12D×100L×4F |
12 |
35 |
12 |
100 |
|
6×20×6D×150L×4F |
6 |
20 |
6 |
150 |
|
8×25×8D×150L×4F |
8 |
25 |
8 |
150 |
|
10×30×10D×150L×4F |
10 |
30 |
10 |
150 |
|
12×35×12D×150L×4F |
12 |
35 |
12 |
150 |
|
14×40×14D×150L×4F |
14 |
40 |
14 |
1 |
