Home > Products > Led Road Lamp > Bridgelux High - Lumen IP67 Led Road Lamp 120W 140W 160W 180W 200W Ce & RoHs Approval

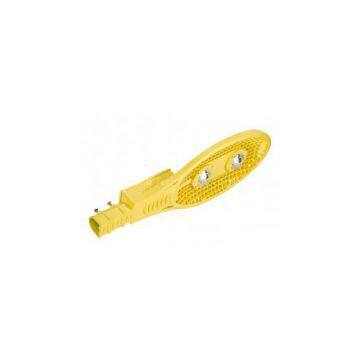

Bridgelux High - Lumen IP67 Led Road Lamp 120W 140W 160W 180W 200W Ce & RoHs Approval

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Coming Technology		Place of Origin	China
Model Number	CO-L403

Product Description

Delivery Time:1-15 days
Certification:CE,RoHS,CCC

Bridgelux high - lumen IP67 Led Road Lamp 120W 140W 160W 180W 200W Ce & RoHs approval

Specifications:

OPT ICAL	LED Power Consumption	2X50w	3X30w	2X60w	2X70W	2X80W	3X50W	2X90W	2X100W
System Power Consumption	110w	100w	130w	155w	175w	165w	195w	210w
LED Initial Flux	100lm-110lm/per watt (*Pure White 6000K-6500K)
Illumination (Enadir) (LED Power=180W PW6500K)	MountHeight= 6M : >115 lux MountHeight= 8M : >64 lux MountHeight= 10M : >42 lux MountHeight= 12M : >30 lux
CRI	WW: Ra>60 PW:Ra>70
Light Distribution Curve	Asymmetric (Bat Wing)/ Rectangular Beam
Beam Angle	120-140 degrees
Light Decay	< 15% (20, 000 hours)
ELECTRICAL	Input Voltage	AC85V-AC265V, AC277V+ (50Hz-60Hz)
Working Voltage	36VDC
TJ	60℃±10 %
Power Efficiency	>85%
Power Factor	>0.95
IP Grade	IP67
MECHANICAL	Dimensions	L95W34H19cm
Net Weight	12.0KG±5 %
Material	Cu-Mg-Al alloy
Working Environment	Temp: -40℃ ~ 55℃ Humid:10%-90%
Dimension of pipe for installation	Φ62mm

Description:

1. Perfect lighting design ensures brightness and uniform illumination, and meet different requirements of road lighting.

2. US Bridgelux high-lumen integrating encapsulated LED chip.

3. Well-designed heat radiation, reaching the best heat radiation effect.

4. Die-cast aluminum alloy housing guarantees its high soundness;

5. Long life power driver ensures above 50000 hours.

6. Environmental friendly and energy-saving, no mercury or lead.

7. Consume 50%-70% less power than HID street light

Applications:

These street lights are designed for main road, highway, tunnel, bridge, avenues, highways, crossing, rural road, industrial estate, national road, parks, campus, boat dock, remote area, military base, farm, airport, etc.
