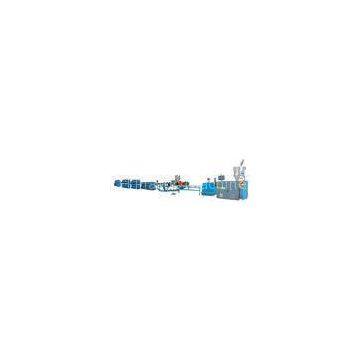

150 - 200m/min Drip Irrigation Pastic Pipe Machine / Production Line For Vegetable With Single Screw

Delivery Time:30 days after perpayment
Certification:ISO9001-2000；CE


150 - 200m/min Drip Irrigation Pastic Pipe Machine / Production Line For Vegetable With Single Screw Extruder

Quick Detail:

The drip irrigation plastic pipe machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.


Description:

Drip irrigation plastic pipe machine included two extruders, one for the inner strip and another one for the outer pipes. The inner labyrinth strip was extruded same time with the outer pipe and welded together by the particular press device. The advantages of this line is fast cooling with high speed and precise processing, the stable speed was up to 150meters/min.


 Competitive Advantage:

Very easy winding because of no-dripper inside Thinner wall thickness can decreased to 0.12-0.15mm,so make the finished product with very competitive cost for farmers Whole system adopts the SIEMENS PLC and touch screen, to assure the high accuracy and stability



Specifications:


Extruder	SJ65/33   SJ75/33
Extrusion speed	150-200m/min
Punching frequency	Max300pcs/min
Inserting speed of dripper	Max350pcs/min
Drive motor	90kw
Machine weight	5000kg
Center height	1200mm
Machine Size	25*3*1.2m
specification of the drip irrigation tape(Can be customized according to design)
Working pressure	0.01-0.1
dripper space	100-150-200-250-300-330-500mm
Dripper specification	DN6.8, DN 12, DN 16, DN 20
wall thickness	0.15-0.6mm
	0.85-1.2-1.5-1.8-2.2-3.0 H/L



Applications:


The Embedded labyrinth drip irrigation tape production line is mainly used in the production of labyrinth drip irrigation pipe,which is widely used in greenhouse cash crop, farmland cash crop and economic trees\' irrigation, such as irrigation for vegetable, flower and plant, tea garden and fruit
Application effect is excellent:
1. Water saving, fertilizer save and labor saving
2. Control the earth surface temperature and humidity, reduce insect pests\' damage
3. Keep the soil structure
4. Improve the quality, increase production and synergy
