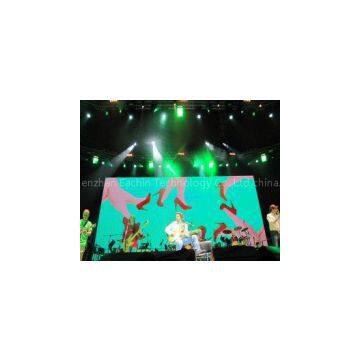

Waterproof LED Curtain Stage LED Screens Full Color

Name: Waterproof LED Curtain Stage LED Screens Full Color
Brand: Eachin
SKU: 149296462
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Eachin

Place of Origin:

China

Model Number:

Shenzhen Eachin Technology Co.,Ltd,

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Eachin

Place of Origin China

Delivery Time:10-15 days
Certification:CE, RoHs, ISO

Waterproof LED Curtain Stage LED Screens full color

Features:

Curtain LED Display. Easy to install and disassemble;Without fans and noise, the complete screen is able to operate with low power consumption.

Application Areas:

·---led mesh, led curtain screen, stage led screen, rental led screen

·---Fashion shows, sports halls, fields, playgrounds.

·---Cinema led screen, stage background led screen.

·---Show-business, concerts, festivals, and other public events stage led display screen.

Specifications:

SMD 5050 Stage LED Screen/ LED Mesh/ LED Curtain
Module	Pitch/mm	p20	p31.25	p37.5
Module size/mm	640x640	750x750	900x900
Density of pixel/(dots/m2)	2, 500	1, 024	711
Resolution of module	32X32	24X24	24X24
Main	Optimum viewing distance	≥17	≥25	≥30
View angle / °	140 H, 90 V	140 H, 90 V	140 H, 90 V
Average power consumption/W/module	100	60	60
Max power consumption/W/module	190	120	120
Driving method	Static constant current
Frame frequency / Hz/S	≥60	≥60	≥60
Refresh rate Hz/S	≥600	≥600	≥600
Luminance of white balance	≥4000 nits	≥3000 nits	≥3000 nits
Operation of Environmental Temperature/℃	below 30 to above 50
IP rating	Front, IP65;Rear, IP43
Working vlotage	110-220 VAC/ 10%
Grey scale/color	displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(manually), 8 levels of each color(automatically)
Input signal	RF, S-Video, RGB, RGBH, YUV, YC&Composition , etc
Control system	linsn(sending card, receiving cards and Hubs)
Average of non-failure life	＞5, 000h
Life span	＞100, 000h
Functionaless dot rate	＜0.0001
