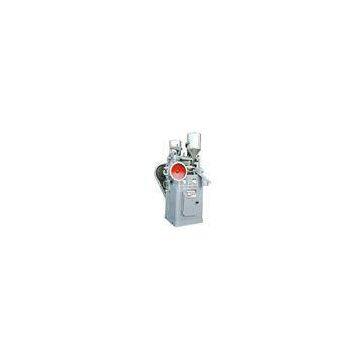

Low Energy Rotary Tablet Press Machine With 15mm Filling Depth For Chemical Industry
Quick Detail:
rotary tablet press,tablet press machine double press equipment suitable for production in small batches. Production Capacity:43000-110000pc/h Warranty:1 year Main Motor Power:3kw 380v/50HzDescription:
This machine is designed for the pressing of round tablets from various kinds of granular materials. It is a basic equipment for batch production of tablets, with double-press mechanism. It consists of two sets of feed assemblage and two sets of press roller unit. The turntable carries 33 sets of punches dies, with 66 tablets be pressed for each revolution of the turntable. During operation, the rotation speed, depth of the filling material and the thickness of the tablets are adjustable.
This machine has won the Fine Quality Product Prize awarded by China National Medical Management Bureau.
Applications:
not only suitable for pressing of round tablets from various kinds og granular materials but also pressing of irregular tablets of different geometric shapes. It is particularly suitable for production in small batches.
Specifications:
|
Number of Dies |
33 sets |
|
Max Pressure |
40 KN |
|
Max Dia. of Tablet |
12 mm |
|
Max Depth of Filling |
15 mm |
|
Max Thickness of Tablet |
6 mm |
|
Turntable Rotation Speed |
11-28 r/min |
|
Production Capacity |
43000-110000 pc/h |
|
Motor Power |
2.2 kw,960 r/min,380V/50Hz |
|
Overall Size (L×W×H) |
930×990×1600mm |
|
Net Weight |
850 kg |
Competitive Advantage:
pressing of round tablets from various kinds og granular materials for production in small batches A powder suction unit is attached High production capacity Meet the GMP requirement Chemical industry most
