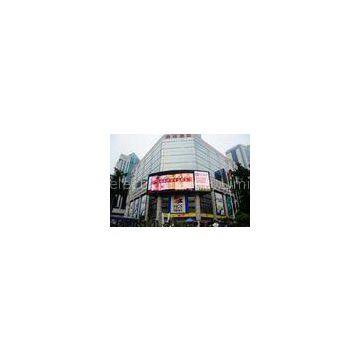

High Definition P20 Outdoor Full Color LED Display Screen For Shopping Center

Pixel configuration

DIP546 2R1G1B

LEDs configuration

Red:wave length: 625~630nm;1100-1300mcd
Green:wave length: 525~530nm;1900-2400mcd
Blue:wave length: 470~475nm;500-700mcd

Pixel pitch(mm)

20

Pixel density(dots/sqm)

2500

Calibrated brightness(cd/sqm,nit)

7500 nits(adjustable)

Calibrated brightness proportion ratio

R:G:B = 3:6:1

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

V60/H120

Color capability

4.4 trillion

Refresh rate(Hz)

>1800 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP43 back side

LED Drive

Constant-current

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30 ~ 65

Storage temperature(Celsius degree)

-35 ~ 70

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Service

Front and back service optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 VAC single phase(50-60Hz)

Maximum power consumption(W/sqm)
