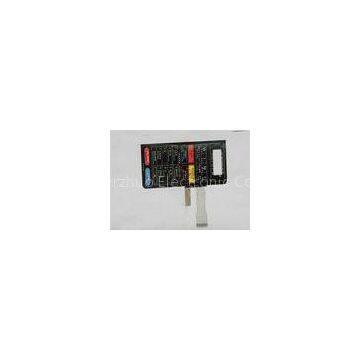

Remote Control Flat Membrane Touch Switch / Membrane Switch Keypad

Remote Control Flat Membrane Touch Switch / Membrane Switch Keypad

Quick Detail :

> name : flat keypad touch membrane switch

> Total thickness : 1.0 mm

> Layer 1 :  0.188 PET

> Layer 2 :  adhesive DT 6100

> Layer 3 : 0.125 mm top circuit

> Layer 4 : 0.125 bottom circuit

> Layer 5 :  national rear adhesive

> Window : glossy

> Button : flat

> Operating condition : 40°c,90%~95%,for 240 hours

> Life span : 300 million  times

Description:

> Surface : glossy

> Overlay button : flat

> Color : 4

> Led window : without

> Circuit crossing : yes

> Conductive side :top side conductive

> Tolerance:0.05 mm

> Water proof class : IP 67

> Connector : without

> Matching color: Pantone and RAL color matching system.

>Tail Length: 25 mm

> Window: glossy clear transparent

> Connector: without

> Leds : without

>Can design for customer if supplied artwork and schematic

>7 days for sample making and 15 days for mass order

>Clear outlook without dirty


Applications:

1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
  B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
  C. For domestic appliance , remote control ,electronic lock , washing machine , microwave oven ,electric cooker ,sound installation and so on

D. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on .

E. For electronic toy, such as electronic organ, recreational machine, electronic target and so on .


2. Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome

Tail end inserting to female connector usually only allowed no more than 20 times

Specifications

Electrical performance

Mechanical performance

 Mechanical size

Environment adatability
