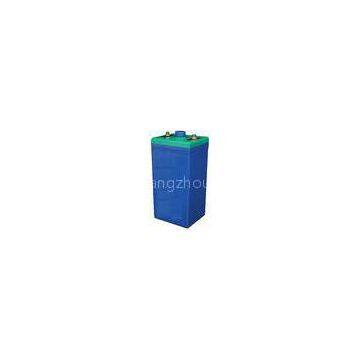

300 AH Solar Energy Storage Battery , NP300-2 2V Lead Acid Battery

300 AH Solar Energy Storage Battery , NP300-2 2V Lead Acid Battery

Model Number : NP300-2

Nominal Capacity : 300 AH      Voltage : 2v

Size :171*151*330*364 mm    Weight: 19.5 KG

Sealed Type : Sealed

Maintenance Type : Free

Description:

2v 300Ah Solar Cell , solar battery, lead acid battery

Features:
1.free maintenance, Long service life
2.No corrosive gas will be generated during normal service
3.Safety for explosion proof
4.Suitable for both cycle use and standby use


Completely sealed and water-free maintenance; no acid gas and environment friendly.

It has adopted colloid electrolyte technology, avoiding density stratification problem of acid solution and eliminating plate corrosion and passivation caused by density stratification.

Applied with German Gel formula, grid alloy and unique plate formula, the battery is performed very well in cycling and recovery from deep discharge, especially in rainy days.

More suitable for using in harsh condition than AGM battery as the rich electrolyte inside of the Gel battery makes it working stable in high temperature or over charge.

Good performance in cold environment and the battery capacity decreases little when using in low temperature.

Little self discharge because of the super-pure material and the low density of the electrolyte, it can be stored over 6 months.




Battery Constructions

1. Positive and negative plates
Positive and negative plates consist of active mass and a lead-calcium alloy grid structure.

2. Retainer, adjusting plate
Unwoven glass fiber cloth, with a high oxidation and heat resistance, is used to offer superior electrolyte absorption and retaining ability and satisfactory ion conductivity.

3.Safety valve
The safety valve opens when there is an abnormal increase in internal pressure caused by overcharging or misusage. Gas is released from the battery to return the pressure back to normal.

4.Container and covers
Container and covers are made of ABS or PP resin, with superior strength and acid resistance characteristics. The container and covers are sealed to prevent electrolyte and gas leakage.




Applications:

Cycle use :
1.movable standby power sources
2.Electrical power toys
3.Medical and measuring equipment
4.Power tools,lawn mowers and vacuum cleaners



Standby use:

1.UPS
2.Emergency lighting equipment
3.Fire alarm and security systems
4.Telecommunications and power equipment
5.Office computers,microcomputer and other office automation equipment.



Competitive Advantage:

Our product is designed base on JISC standard,do not need to fill into water when Using,  easy to use for user . We are  lead-calcium alloy plate original manufacturer,  we can control the quality and the cost for core of the battery, so we can offer customer high quality battery in attractive price .


How to replace battery

1.Switch off the engine and keep sparks flames cigarettes away from battery at all times before removing the old battery .

2. Disconnect the negative terminal , first and avoid short-circuit caused by tools ,when removing old battery .

3. Clean corroded parts in tray and cable clamps ,  before installation of new battery

4. Clean corroded parts in tray and cable clamps ,  before installation of new battery
