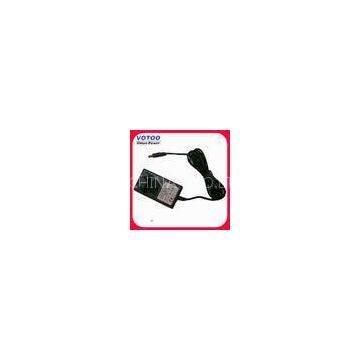

European Plug 24V 1A Wall Mount Notebook Switching Power Adapter For UK Plug

Delivery Time:5-10 days
Certification:CE,ROHS

European Plug 24V 1A Wall Mount Notebook Switching Power Adapter For UK Plug

Quick Detail:

24V 1A Wall mount Switching Power Adapter Universal Input 100~240VAC 50/60Hz AC plug: EU,US,AUS,UK,CN etc. 100% burn-in before shipping 100% aging before shipping leakage Current: 0.25mA SafetyL SCP OCP OVP Certificate: CE & RoHS

Features:

o Output Voltage: 24V

o Output Current: 1A

o Power: 24Watt

o Universal Input 100~240VAC 50/60Hz

o Short Circuit Protection

o Over Voltage Protection

o Over Current Protection

o Green Circuit Design

o Ripple & Noise: 1% of Output Voltage

o Leakage Current: 0.25mA

o No load power Consumption

o Working Temperature:0-40°C Max

o Efficiency:85%Min

o Small volume, light weight, high efficiency.

o Cooling by free air convection.

o 100% Full load burn-in test.

o One year warranty.

o High Efficiency

Weight: 160g

Dimensions: 87.0 x 48.0 x 31.0mm

1)100% compatible,brand-new

2)Approvals:CE&ROHS&FCC

3)Strickly tested,aging testing included

4)Excellent line&load regulation

5)Low ripple&noice

6)Over voltage/overload/short circuit protection

7)Differ 100% ent AC plug for US,EU,UK and AU to meet local standards

8)Power saving

o Accurate information and descriptions.

o All orders are shipped on time.

o All items are fully inspected prior to shipping to meet international standards by our QC staffs.

o All items are with CE RoHS approval to ensure the products quality.

o AC plugs option: EU, US, UK, AUS plugs ect.

o DC cord : standrad 1.2m , and according your requirement, such as 1.5m,2m etc. DC plug option: 5.5*2.1*10mm, 5.5*2.5*10mm, Right Angle; mini usb, micro usb and mini HDMI etc.

Packing details:

1 piece per white box

58PCS/CTN

G.W.: 8.12KGS/CTN

N.W.:9.3KGS/CTN

Specification:

OUTPUT	DC VOLTAGE	24V
OUTPUT POWER	24W
CURRENT RANGE	1A
INPUT	VOLTAGE RANGE	110VAC -240V AC
FREQUENCY RANGE	50-60Hz
EFFICIENCY(Typ.)	85%
ENVIRONMENT	WORKING TEMP.	-0°C ~ +40°C (Refer to output load derating curve)
STORAGE TEMP.,HUMIDITY	-10°C ~ +70°C 10~95% RH
COOLING METHOD	BY FREE AIR CONVECTION

How to Install?

1. Connect power supply to the supplied unit.

2. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.

3. Do not install power supply in locations with high humidity, dust or strong direct sunlight.

4. The power supply should be installed in a location with good airflow.

5. Power supply can only be installed indoors.

Applications:

1. CCTV security, door access, digital camera, etc.

2. POS machine, mini printing machine, etc.

3. Electronic scale, flowerpot etc.

4. LED strip, LED lighting etc.
