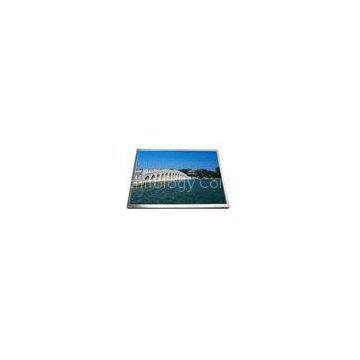

10.4" CMI TFT Chimei LCD Panel G104AGE-L02 For Warp Knitting Machine

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CMI		Place of Origin	China
Model Number	G104AGE-L02

Delivery Time:2-7days on receipt of payment
Certification:CE,ROHS, FCC

10.4\" CMI Innolux TFT LCD panel G104AGE-L02 for Warp Knitting Machine

Quick Detail

1. Part No:G104AGE-L02

2. Size:10.4inch.

3. Resolution:800x R.G.B. x 600

4. Luminance:350 nit

5. Backlight: LED

6. Power supply:3.3v(Typ.)

Specifications

Module number	G104AGE-L02
Pixel Number	800x R.G.B. x 600
Pixel Pitch	0.264x 0.264(mm)
Active Area	211.2 (H) x 158.4 (V)(mm)
Bezel Opening Area	214.8*162.7
Driver Element	a-si TFT active matrix
View angle	R/L/U/D 80/80/70/70 (Deg)
Pixel Arrangement	R.G.B. Vertical Stripe
Surface Treatment	Hard coating(3H),AG
Transmisive Mode	Normally white
Electrical Interface	LVDS
Brightness	350 (cd/m2)
Contrast ratio	700:1
Outline dimension	238.6(H)x 175.8(V) x 7.5(D)(mm)
Gross weight	280g(Typ.)
Backlight	LED
Response time	16 (ms)
Operate temperature	-30-85 (°C)
Storage temperature	-30-85 (°C)
Display Colors	262k/16.2M
Power Supply Voltage	3.3v
Module Power Consumption	5.1W(Typ.)
Backlight lifetime	30k hrs(Min.)
Package	CMI original package; 18 pcs/carton; Carton size: 465x362x314 mm; Gross weight: 8.3 Kgs.

Main Models of CMI as follows:

FAQ

1. Q: What Brand do you have?

A: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG

2 .Q: What is your delivery method?

A: DHL , UPS , FedEx ,TNT

3. Q: what’s your products condition?

A: Brand New,A grade,Original Package.
