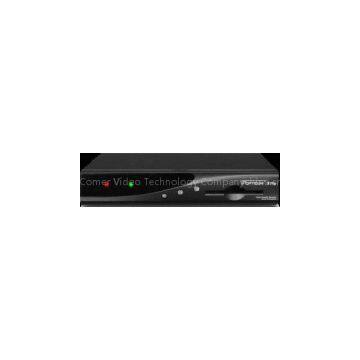

Conax CA, RS 232, USB Opticum X11 HD PVR Digital Satellite Receiver With BISS PATCH

Conax CA, RS 232, USB Opticum X11 HD PVR Digital Satellite Receiver With BISS PATCH

Model No.: Opticum X11 FTA satellite reicever with BISS PATCH

Similar Model No.: Opticum 4000C, 4050C, 4100C, 4060CX, 4160CX, 9500hd, X80 FTA, X80CA, X403P

FEATURES

Conax CA support
USB support
Fully compliant to MPEG-2 / DVB standard
4, 000 programmable channels
950~2150 MHz IF range
MCPC/SCPC, C/KU reception
Fully MPEG 2/DVB compliant
1 LNB input, IF Ioop through for 2nd receiver
Variable input symbol rate 2~40Msps
Auto satellite program searching
Manual PID scan function
Picture-In-Graphics function
Subtitle function
Electronic Program Guide
Favorite channel selection/Parental lock
Auto NTSC/PAL switching
Teletext supported
RS 232 downloading

SPECIFICATION

General data:
LED display: 4 Digits
Input Voltage Rang e: 100~250V AC 50/60 Hz
Power consumption: max 20 W
Operating Temperature: +5?C ~45 ? C
Size (WxDxH) in mm: 260x185x57 or 220x153x49(Optional)
Net-Weight: 1, 5 kg Tuner:
Input Frequency Range: 950~2150 MHz
RF Input Level:-25~-65 dBm
LNB Power: 13/18 V DC (+(- 5%)
Max. 500 mA,

Video Decoder:
Profile level: MPEG-2 MP@ML
Video Resolution: 720 x 576 (PAL), 720x 480 (NTSC)
Aspect Ratio: 4:3, 16:9(Letter Box)

Demodulation:
Modulation: QPSK(SCPC, MCPC capable)
Input Symbol Rate: 2~45 Ms/s
System and Memory:
Processor: 200MIPS based CPU
Flash Memory: 16 Mbits
SDRAM: 64 Mbits

Audio Decoder:
MPEG/ layer I & II,
Sampling rate: 32, 44.1 & 48KHz
Audio modes: Mono/Dual Mono/Joint Stereo/Stereo


Connectors:
SAT IN
SAT OUT
1 SCART TV (RGB, CVBS)
RCA/Composite Video(CVBS)/Audio Left & Audio Right
RS232:9 way D RS232 DCE serial port
