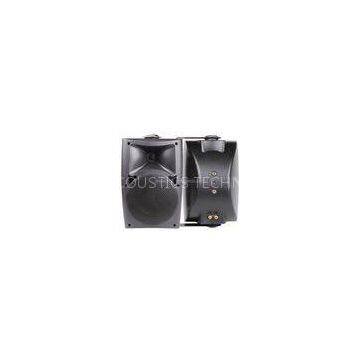

5.25 Inch Outdoor Passive Wall Mounting Speakers Waterproof Loudspeaker



5.25 inch outdoor wall mounting speakers , waterproof speaker



Quick Detail:

1. Function : background music player
2. Type : Passive,full range
3. Color : Black front plastic panel with cover
4. Impedance 8ohm
5. Spl 88dB
6. Frequency range 70HZ-30KHZ
7. Rated power 30w
8. Peak power 200w
9. Certification CE, ISO,RoHS
10. Place of original :Dongguan ,China (mainland)



Description:

 5.25\" 2 way is high quality passive in wall &wall hanging waterproof and anti-uv ,rust protection speaker use for in-door & out-door mounting. the speaker size is 304×173×181mm,  it is convenience portable install .
The 5.25\" 2way enclosure by high thermostability ABS plastic raw materials production ,5.25\"  woofer is rubber butyl surround with paper coating gloss cone ,stronger magnet 10oz ,Y35 grade ,the tweeter is 1.25\" neodymium dome tweeter .with transformer 8Ω 70v/100v 10w ,20w ,30w ,frequency range 70HZ-30KHZ
This model speaker have been through 12H continue pink noise power test ,this test condition is very strict ,we give them a pink noise sigal then put into High temperature &Humidity chamber to test .both condition circulation to test .all mounting metal bracket and rotary knob through 12H salt spray.


Applications:

5.25\" 2way in walll & wall hanging speaker is multi function install speakers .it can according customers different mounting place to design for in-door ,out-door use  ,when with 70v/100v transformer assembly ,the speaker can use for longer distance output ,some times use for station ,school ,hotel ,shopping plaza ,park,square ..etc public address .
when with crossover 12dB/oct assembly use ,the speaker can use for shorter distance output ,like as meeting room ,restaurant ,home ,bathroom  ..etc
Erisson speaker manufactory site

Specifications:


Mechanical drawing:

Quality control for 5.25 inch ourdoor wall mounting speakers

We have advanced instruments, subtle mold making technique..

Excellence in every detail, Strictly quality control. To ensure high quality, we have a professional QC team,

 products have to be repeat checking.

Process of inspecting the speaker

01. IQC: inspection of the raw material;

02. QC: fully inspection of the board, and IPQC check the correctness of the processing of every worker;

03. QC: fully inspection of the products, IPQC check the correctness of the processing;

04. IPQC inspection of the charger aging;

05. IPQC inspection of the packing;

06. QA final inspection of the products and determination of shipment.
