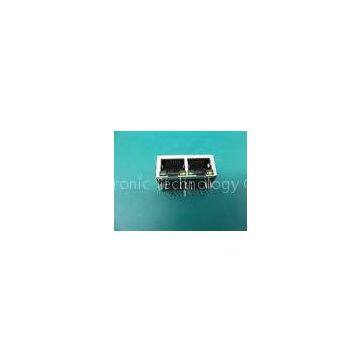

Vertical Ethernet 2 Port Rj45 Cat5e With Internal Magnetics , KRJ-201ANL
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
10 / 100base 1X4 Vertical 4 Port Rj45 Tab-Down With LEDS KRJ-401ANL
-
IEEE 802.3 PC Board Bridge 10 PIN 4 Port RJ45 Jack Female 10 / 100 / 1000Base
-
10 / 100 / 1000Base 4 Port Rj45 Tx , 21.3mm Ethernet Shielded Rj45 Jack
-
Vertical 1000M 1X4 4 Port Rj45 Tab-Down For CAT5 / CAT6 KRJ-401QWNL
-
10 / 100Base UTP 4 Port Rj45 Tab-Down , Rj45 Magnetic Jack KRJ-405QJNL
-
10 / 100Base Tab-Down 4 Port Rj45 Ethernet With Internal Magnetics
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-201ANL |
Product Description
Certification:GP ROHS SGS ISO9001
1.Type: 2 port rj45
2.TAB direction: Down
3.Shieded:YES
4.LEDS:YES
5.EMI finger:YES
6.Length: 21.5mm
Vertical Ethernet 2 Port Rj45 Cat5e With Internal Magnetics , KRJ-201ANL
Descriptions:
＊ 10/100Base-Tx RJ45 double port 1X2 Vertical w/LED with side entry
＊ Double port 1X2 Tab-Down RJ45 with internal magnetics
＊ Internal magnetics are 100% electrically tested for HI-POT and functionality
＊ Suitable for CAT5&6 fast Ethernet Cable or better UTP
＊ 350uHminimum OCL with 8mA bias current
＊ High performance for maximum EMI suppression
＊ Minimum 1500Vrms isolation per IEEE 802.3 requirement
＊ ROHS-6 peak wave solder temperature rating 260℃
＊ Operating temperarure range :0℃ to +70℃
＊ Storage temperature range :-40℃ to +85℃
＊ Number of positions:8
＊ Number of contacts loaded:8
＊ Shieded:YES
＊ Rohs compliant
＊ Length:21.5mm
＊ LEDS:YES
＊ EMI:YES
＊ Usage:KRJ-201ANL
Electrical Specifications:
|
Insertion Loss dB max |
Return Loss dB min | Cross Talk(dB TYP) |
Common Mode Rejection (dB TYP) |
Hipot (vrms) |
OCL (uH MIN) |
TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | 1:1 |
Material specifications:
＊ Plastic core:Glass fiber filler PBT Black(UL94V-0)
＊ Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
＊ PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
＊ Housing:Phenolic, PBT Black (UL94V-0)
＊ Metal shell:Copper Alloy ,Tin and Nickel plated
