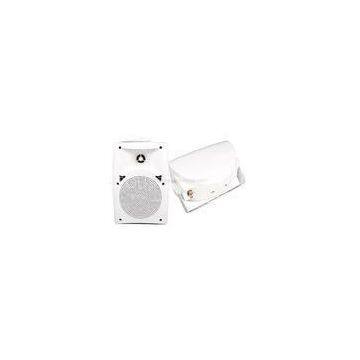

4 Inch Waterproof And uv Wall Mounting Speakers With Paper Cone



4 inch waterproof and uv wall mounting speakers with paper cone


Quick Detail:

1. Function : wall mounting speakers
2. Type : Passive , full range
3. Color : white
4. Impedance : 8ohm
5. Spl : 88dB
6. Frequency range : 70HZ-20KHZ
7. Rated power : 25w
8. Peak power : 100w
9. Certification : CE , ISO , RoHS
10. Place of original : Dongguan ,China (mainland)


Description:

4\" 2 way is passive in wall &wall hanging waterproof and anti-uv ,rust protection ,speaker use for

in-door & out-door mounting.the plastic enclosure size is 274×157×165mm,  it is convenience

portable install .The 4\" 2way enclosure by high thermostability ABS plastic raw materials production ,

4\"  woofer is rubber butyl surround with paper coating gloss cone ,stronger magnet 10oz ,Y35 grade ,the

tweeter is 1.25\" neodymium dome tweeter .with transformer 8Ω 70v/100v 10w ,25w ,25w ,frequency range

70HZ-20KHZ,This model speaker have been through 12H continue pink noise power test ,this test condition

is very strict ,we give them a pink noise sigal then put into High temperature &Humidity chamber to test .

both condition circulation to test .all mounting metal bracket and rotary knob through 12H salt spray.



Applications:


4\" 2way home audio system,  in walll & wall hanging speaker is multi function f install speakers .

it can according customers different mounting place to design for in-door ,out-door use  ,

when with 70v/100v transformer assembly ,the speaker can use for longer distance output ,

some times use for station ,school ,hotel ,shopping plaza ,park,square ..etc public address .
when with crossover 12dB/oct assembly use ,the speaker can use for shorter distance output ,

like as meeting room ,restaurant ,home ,bathroom  ..etc

Erisson speaker manufactory site



Specifications:


Mechanical drawing:
