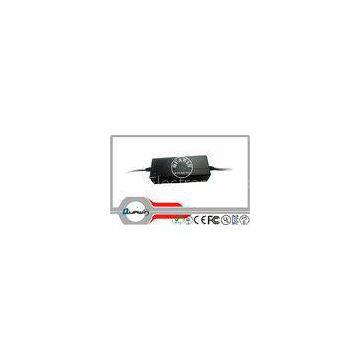

Black Electric Rechargeable Battery Chargers Charging Li-Polymer Battery Pack
- T/T L/C D/P D/A
- 7 days
You May Like
-
Black 5A 21W Lithium-Ion Battery Chargers Charging Lithium Polymer Batteries
-
CC - CV Portable Lithium-Ion Battery Chargers DC Jack Li-Ion Battery Charger
-
Constant Current - Constant Voltage Rechargeable Battery Chargers Charging Li-Ion Battery Pack
-
Electric 3.7v Lithium Polymer / Lithium-Ion Battery Chargers 4A 16.8W 4.2V
-
Customized Wall Mounted Li-Polymer Battery Pack / Lithium Battery Chargers
-
Portable Led Indication Lithium Polymer Battery Wall Mounted Chargers 12.6W 4.2V
Product Details
Brand Name | QUAWIN | Place of Origin | China | |
Model Number | QW037-060-L |
Product Description
Certification:CE UL SAA ROHS
Black Electric Rechargeable Battery Chargers Charging Li-Polymer Battery Pack
Quick Detail:
Brand Name:QUAWIN
Model Number:QW037-060-L
Use:3.7V Li-ion or Li-polymer battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 4.2V
Certificate:CE FCC UL SAA PSE KC ROHS
Color:black
Input voltage:100-240VAC 50/60Hz
Output voltage:4.2V
Output current:6A
Output power:25.2W
Charge mode:CC—CV(Constant Current—Constant Voltage)
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal
Packaging & Delivery :
inner package: white box/polybags/at your request outer package:carton
Delivery Detail:sample within 5 work days,7~25 days for bulk order
Specifications:
3.7V Li-ion or Lithium Polymer battery PACK
Features:
• Charging mode:CC—CV(Constant Current—Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=80%
• Operating temperature:-10C ~ 45C
• Storage temperature:-20C ~ 70C
• Operating humidity:5%~90%RH
Specification:
• Input: AC 100-240V 50-60Hz 1.0A
• Output: DC 4.2V
• Charging current: 6A
• Weight: 250g(only body)
• Dimension:115.0x47.0x34.0mm
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
ITEM |
QW037-050-L |
QW037-060-L |
QW037-070-L |
QW074-030-L |
QW074-035-L |
QW111-020-L |
Output voltage: |
4.2V |
4.2V |
4.2V |
8.4V |
8.4V |
12.6V |
Rated output current: |
5A |
6A |
7A |
3A |
3.5A |
2A |
Output power: |
21W |
25.2W |
29.4W |
25.2W |
29.4W |
25.2W |
ITEM |
QW148-015-L |
QW185-010-L |
QW222-010-L |
QW259-005-L |
QW259-010-L |
|
Output voltage: |
16.8V |
21.0V |
25.2V |
29.4V |
29.4V |
|
Rated output current: |
1.5A |
1A |
1A |
0.5A |
1A |
|
Output power: |
25.2W |
21W |
25.2W |
14.7W |
29.4W |
