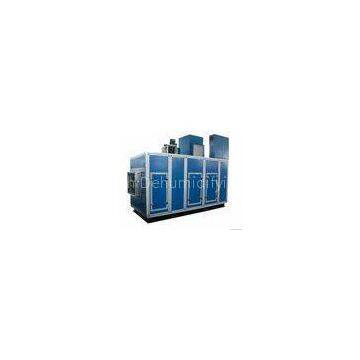

Industrial Desiccant Wheel Dehumidfier , Air Handling Dehumidifier

Delivery Time:Within 25 days after receipt of down payment.
Certification:ISO9001:2008

Industrial Desiccant Wheel Dehumidfier , Air Handling Dehumidifier

Quick Detail:

High moisture removal. Suitable for low temperature and RH process. Could be usded together with air conditioner. Start with domestic first rotor dehumidifier, With 30 years professional theoretical and practical experience in dehumidifier field Draw up the  national military standard and industry standard of dehumidification equipment

Description:

The Dehumidifier is specialized for normal temperature and low humidity process environment. Its major characteristics are as follow:

Main components: pre-filter, desiccant rotor, process fan, electric controller and cabinet. The cabinet is made of aluminum alloy, and double insulation panel structure with high density polyurethane insulation material inside, strong, compact, anti-corrosion, and it is anti-“cold bridge” which can help avoid condensating. The dehumidifier select PROFLUTE silica gel desiccant wheel from Sweden. Select centrifugal fan, its impeller and vent was plated with anti-corrosion coating, it’s strong and anti-corrosion. G4 rough effect air filters to assure air purity. Use text display, temperature and humidity probe to control temperature and humidity. It is convenient to operate.

Main Parameters of ZL Series Dehumidifier

Main Parameters /  Model	ZLK-120	ZLK-600	ZLK-1000	ZLK-6000
Process Air	Airflow m³/h	120	600	1000	6000
Fan Power kW	0.085	0.37	1.1	5.5
Reactivation Air	Airflow m³/h	40	200	330	2000
Fan Power kW	0.085	0.25	0.37	1.5
Reactivation Mode	Electrical Heating Power kW	1.5	7.2	8.4	60
Steam Consumption kg/h	/	/	14	100
Dehumidify Capacity	20°C,70%,kg/h	0.6	4.5	7.2	45.9
Drive Motor Power kW	0.015	0.025	0.04	0.1
Installed Power	Electrical Heating  kW	1.685	7.845	9.91	61.6
Steam Heating kW	/	/	1.51	1.6
Overall Dimensions	Length  mm	360	550	650	1800
Width  mm	340	550	650
