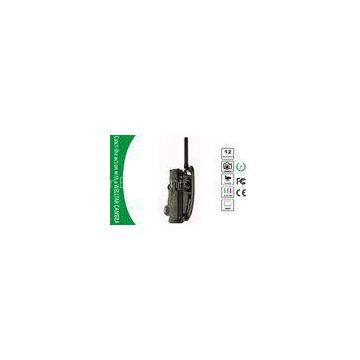

Small Camo Waterproof IP54 MMS GSM SMS Trail Camera , Motion-Triggered

Model

Parameters

Image Sensor

12 Mega Pixels Color CMOS

Max. Pixel Size

2560x1920

Lens

F=3.1; FOV=52°; Auto IR-Cut

IR Flash

82 Feet/25 Meters

LCD Screen

48x35.69mm(2.36\"); 480(RGB)*234DOT; 16.7M Color

Operation Keypad

6 Keys

Memory

SD Card (8MB ~16GB)

Picture Size

5MP/12MP/1.3MP = 2560X1920/4000X3000/ 1280X960;

Video Size

640x480: 20fps; 320x240: 20fps

PIR Sensitivity

High/Normal/Low

PIR Sensing Distance

65ft/20m(Below 77°F/25°C at the Normal Level)

Prep PIR  Sensing Angle

Left and right light beams form an angle of 100°; Each lens covers 10°

Main PIR Sensing Angle

35°

Operation Mode

Day/Night

Trigger Time

0.8 Second (When using the 2G SD card)

Trigger Interval

0sec - 60min; Programmable

Shooting Numbers

1~6

Video Length

1-120sec.; Programmable

Camera + Video

First take Picture then Video

Playback Zoom In

1~16 Times

Time Stamp

On /Off; Include serial no., temperature and moon phase

Timer

On /Off; Time Lapse Programmable

Password

4-Digit Numbers

Device Serial No.

4 digits and 26 alphabets set by yourself

Periodic Shot

1 Second ~
