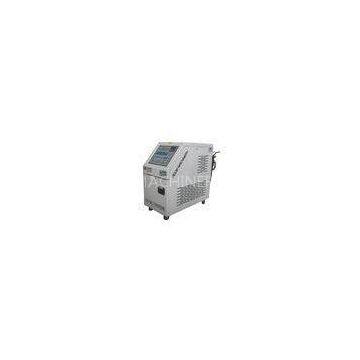

180 Degree Industrial Oil Mold Temperature Control Unit , Indirect Cooling

Delivery Time:Within 20days after receiving deposit
Certification:CE|ISO

180 Degree Industrial Oil Mold Temperature Control Unit , Indirect Cooling

Quick Detail:

1. Temp. Control accuracy:PID±1℃

2. Temp. Control range: Inlet water temperature+25℃-180℃

3. Certification:CE & ISO

4. Controller:microcomputer

5. Heating capacity: 9KW

6. Maximum power consumption: 10KW

7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn

Description:

Explosion-proof equipment(optional) Air blowing and return water function(optional) Thermometer for return water Automatic air-exhausting function after startup Switchover of heating power Instant cooling shut-down function(optional) RS485 communication function for automated management(optional) BY-PASS pressure release loop for hot water Customizable multi-point temperature control unit Customizable horsepower and heating power of water pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +15℃-180℃ for incoming water Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionals

Specifications:

ITEM	UNIT	AOS-05A
Temp control range	℃	Inlet water temperature +25℃-180℃
Temp control accuracy	℃	PID±1℃
Power supply		AC3∮380V 50HZ +E(5M)
Heat transfer medium		Conduction oil
Cooling method		Indirect Cooling
Heating capacity	KW	6
Max. power consumption	KW	7
Horsepower of pump	hp	0.5
Working flow of pump	L/min	22
Working pressure of pump	Kg/cm2	1.3
Oil reserve	liter	8
Alarm function		excess temperature/Open phase/oil starvation/ overloading/reverse turn
Cooling water pipe	inch	1/2
Circulating water pipe	inch	3/8×2
Size(L×W×H)	mm	630×325×745

Competitive Advantage:

1. Strict quality control system

2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

3. Our product is environmental and energy-saving

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2

Applications:

Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineerin
