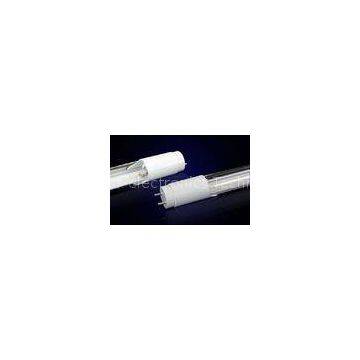

Indoor 120cm SMD3014 T8 Led Tube Light 18W With Isolated Led Driver CRI 80

Indoor 120cm SMD3014 T8 Led Tube Light 18W With Isolated Led Driver CRI 80 thumbnail-1
Indoor 120cm SMD3014 T8 Led Tube Light 18W With Isolated Led Driver CRI 80 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TKLED
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Shenzhen Twinkle Opto-electronics Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TKLED
Place of Origin China
Delivery Time:sample within 3 days,big order between 10-20 days
Certification:CE ROHS, TUV, UL, SAA, ETL

Indoor 120cm SMD3014 T8 Led Tube Light 18W with Isolated Led Driver CRI 80

Quick Detail:

Item Type T8 LED tube
LED Light Source SMD2835
Tube length 1200mm, 4ft
Input Voltage(V) 100-265
Lamp Power(W) 18
Lamp Luminous Flux(lm) 1900-2050
Lamp Luminous Efficiency(lm/w) 105
CRI (Ra>) 72-80
Color Temperature(CCT) WW2700-3300K, NW4000-4500K, CW6000-6500K
Working Temperature(℃) -20 - 65
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, EMC, ETL, ROHS
Place of Origin Guangdong, China (Mainland)
Brand Name TKLED
Chip brand Epistar
LED qty 96pcs
Cover type milky, clear
PFC >0.95
Package 25pcs/ctn

Description:

1.  Type: T8 available

2.  Size: 30cm, 60cm, 90cm, 120cm, 150cm, 180cm, 240cm available

3.  Great design of heat sink ensures minimum heat and Excellent heat dissipation technology adopted,  ensures REAL long life time

4.  Light Source: SMD5630, SMD2835, taiwan made Epistar chip, ENERGYSTAR.

5.  Attenuation: 3% after 5000 hours continuos working, no more since then.

6.  One end power input or two ends power input optional

Application:

Residential lighting

Commercial lighting

Application: Household, restaurant, hotel, garage, store, mall, office and show room lighting and many others

Specification:

Part No. Dimension LED Qty Luminous CRI Power consumption

TK-T8-10W-60026 ￠26*600 45pcs
SMD2835		 900-1000lm >72 10W
TK-T8-13W-90026 ￠26*900 75pcs
SMD2835		 1250-1350lm >72 15W
TK-T8-18W-120026 ￠26*1200 96pcs
SMD2835		 1900-2050lm >72 18W
TK-T8-22W-150026 ￠26*1500 120pcs
SMD2835		 2250-2450lm >72 22W
TK-T8-28W-180026 ￠26*1800 150pcs
SMD2835		 2850-3000lm >72 28W
TK-T8-36W-240026 ￠26*2400 180pcs
SMD2835		 2850-3000lm >72 36W

Competitive advantages:



The brief introduction of our tube light driver:

1.  Own design driver, top chinese technology

2.  Passed EMC and LVD, bear 4000V high voltage

3.  High power conversion efficiency: >95%

4.  Starting time < 0.1S

5.  No stroboflash

6.  One end power input or two end power input options

7.  Just use our LED starter, no need to change wires when installation.

8.  Over current protection, over heat protection, short circuit protection. Safe to use

Tube light advantage:

1.  High lumens and efficiency

2.  180° rotatable end-cap options

3.  Lumens efficiency: >105lm/W(transparent cover)

4.  Use Isolated driver, more safe in installation

5.  3 years warranty.

6.  LED Starter for easy replacement of Fluorescent tube

Business conditions:

Minimum Order Quantity: 200pcs
Price: negotiable
Packagin
