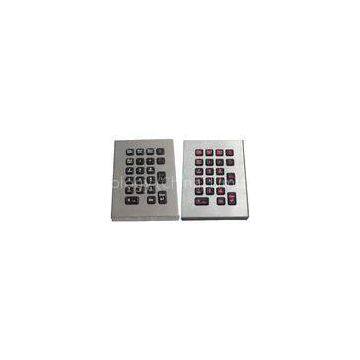

IP65 dynamic desktop vandal proof industrial military backlight pc keyboards/keypads with industria

Delivery Time:ASAP Within 2 weeks upon payment confirmed
Certification:CE,FCC,ROHS,IP65,IP68,ESD

Quick Details:
1. IP65 industrial & military keyboard with adjustable industrial backlight
2. Electroplate Titanium Black on the top stainless steel plate (optional)
3. CE, FCC, ROHS, IP65, ESD
Descriptions:
1. 21 keys IP65 dynamic vandal proof industrial & military keyboard
2. industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast
and accurate input without any noise
3. high quality durable black titanium electroplated on the top stainless steel plate (optional)
4. Desk top mounting solution
Special Features:
1. NVIS-compliant adjustable red backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or
vehicle applications where night vision goggles are necessary;
2. Strong polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof
under hostile environments.
3. Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or
liquid and dirt, when mounted in a suitable enclosure.
4. Excellent tactile feel with full travel switches and allow users to achieve fast and accurate data input without any noise.
5. With firm tactile perception for comfortable operation
6. Key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering
rub-off.
7. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
8. PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
9. Operational life of more than 10 million cycles per key.
10. Resistant to most commonly used cleaning agents.
Applications:
1. exposed, unsupervised, public environments, and military as Army, Navy, Air force.
2. rapid, reliable and responsive data entry in tough, wet or hostile conditions.
3. A hardened stainless steel front plate and polymer keys ensure the keypad’s resistance to hard use, abuse and vandalism.
Specifications:

MECHANICAL DATA
Key	24 keys
Key top style	Protuberant rectangular keys.
Actuator/keys materials	polymer
SS housing	full SUS304 stainless steel housing.
Robust polycarbonate frame	Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing k inside parts with S.S housing
Key Size	11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key,
Key travel	1.50mm
Switch life	more than 10 million of operations.
Lettering	laser-etched or high quality ink print.
G.W.	0.8 KGs
Dimensions	116.0mm x154.4mm x 23.0mm( L x W x H)
Power supply voltage	5 VDC ±0.25V
Current rating (active mode)	17 mA
Switch life	more than 10 million of operations

ELECTRICAL DATA
Supply Voltage	+5V DC 5%
Current Rating	30mA for keyboard and touchpad without backlight. 130mA for keyboard with backlight on.
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
