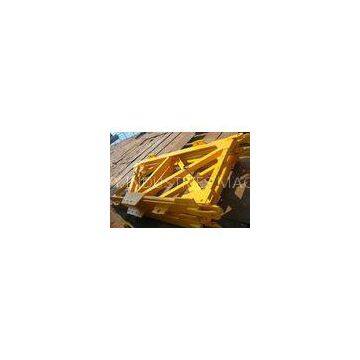

F0/23B Construction Tower Crane Standard Section With Q345B Steel

We are the real manufacturer of Tower Crane and Mast Section in China, we also accept OEM order and package.

1. Plate type standard section

2. Exchangeable standard section

3. Specification: F0/23B

4. Dimensions: 2,000mmX2,000mmX3,000mm

5. Material: Q345B steel

6. Weight:1700kgs

Description:The product can be exchangeable with POTAIN’s F0/23B Plate type standard section .The main chord adopts the high strengthened  angle steel(200mmX200mmx20mm). The crawling ladder and platform make of HDG steel with strong weatherability.

.Applications:All types of plate standard section be used for  tower crane and flat head tower crane

Specifications:

1. Section dimension: 2000mmX2000mmX3000mm

2. Forging fish plate be jointed by  pin roll (diameter 55mm)

3. The main chord be made of  angle steel (200mmX200mmX20mm )

Competitive Advantage:

1. The product can be exchangeable with POTAIN’s F0/23B Plate type standard section .

2. The structual parts be dealed with shot blasting machine to ensure the cleaning of the workpiece surface for relieving of internal stress, increasing the intensity of steel and adhesive force of paint film. The primer epoxy and polyurethane finish coat be painted separately on it with weatherability.
